Produktbeskrivning

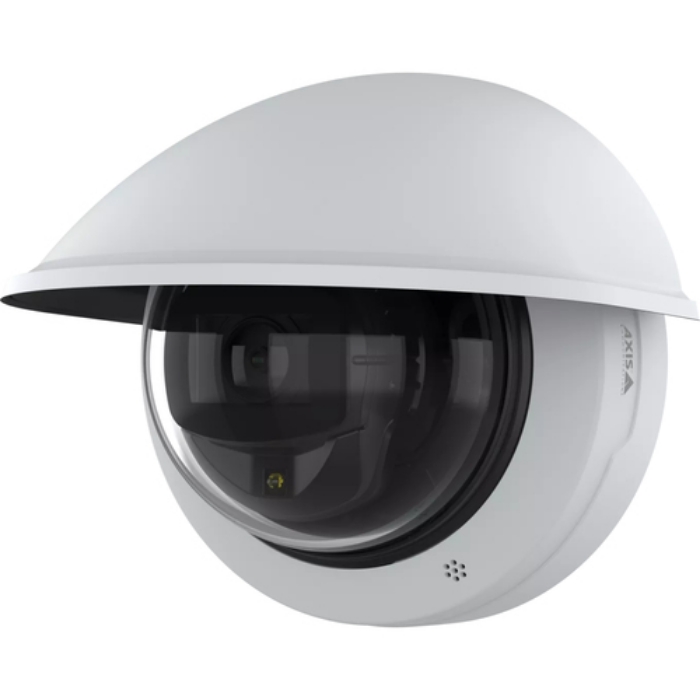

AXIS M4225-LVE Dome Camera

This compact, varifocal dome camera offers great images in 2 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.

Great images, every time

AXIS M4225-LVE delivers great image quality in 2 MP. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful with strong security

Featuring a deep learning processing unit (DLPU), AXIS M4225-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

Small and discreet

This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.



Viktiga egenskaper

Axis 02814-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes

Form factor	Dome
Mounting type	Wall
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.03 lx
Angle of rotation	360 °
Lens viewing angle, horizontal	100 °
Lens viewing angle, vertical	52 °
Tilt angle range	-10 - 65 °
Pan range	-180 - 180 °
Camera pixel size	2.9 µm
Camera shutter speed	1/20000 - 1.5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Zoom capability	Yes
Focal length range	3.2 - 7.2 mm
Auto focus	Yes
Maximum aperture number	2.7
Minimum aperture number	2.9
Recognize distance (wide)	8.8 m
Identify distance (wide)	4.4 m
Observe distance (wide)	17.4 m
Detect distance (wide)	43.7 m
Observe distance (tele)	40.4 m
Closest focusing distance	1 m
Recognize distance (tele)	20.4 m
Detect distance (tele)	101.8 m
Identify distance (tele)	10.2 m

Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 240,640 x 360,1280 x 960,1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Flip & mirror	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)

Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	1000 MB

Intelligent Video Surveillance (IVS) system features	Abandoned object,Line crossing detection,Moving object
Privacy protection	Yes
Security algorithms	EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS
Human and vehicle targets classification	Yes

Cloud-managed	Yes

Power source type	PoE
Power consumption (typical)	2.7 W
Power consumption (max)	10.5 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	140 mm
Depth	112 mm
Height	126 mm
Weight	540 g

Number of cameras	1
Sun shield included	Yes
Manual	Yes

Compliance certificates	BSMI,CE,EAC,RCM,REACH,RoHS,Trade Agreements Act (TAA),UKCA,UL,VCCI,cUL
Doesn't contain	Brominated Flame Retardant (BFR),CFR,PVC
