Produktbeskrivning

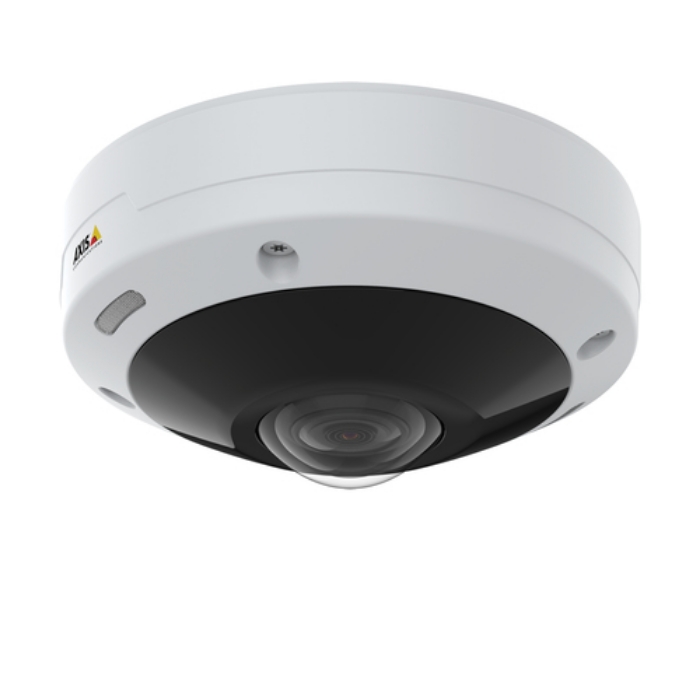

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.



Viktiga egenskaper

Axis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Number of languages	12
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,FRE,ITA,JPN,KOR,POL,POR,RUS
Certification	EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
LED indicators	Yes
Housing material	Aluminium
Protection features	Dust resistant,Water resistant
International Protection (IP) code	IP66
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.04 lx
Field of view (FOV) angle	183 °
Lens viewing angle, horizontal	183 °
Camera shutter speed	1/22000 - 1 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.7 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Focal length range	1.3 mm
Auto focus	No
Fixed focus	Yes

Night vision	Yes
LED type	IR

Maximum resolution	2880 x 2880 pixels
Total megapixels	12 MP
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Privacy masking	Yes
Image quality adjustment	Brightness,Contrast

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS
Built-in microphone	Yes
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	1000 MB
Internal memory	2000 MB

Ethernet LAN (RJ-45) ports	1

IP address filtering	Yes
Pixel counter	Yes
Alert notification type	E-mail,Text alert message
Security algorithms	802.1x RADIUS,HTTPS
Active tampering alarm	Yes
Digest authentication	Yes
HTTPS encryption	Yes

Power source type	PoE
Power consumption (typical)	7.9 W
Power consumption (max)	15.5 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	69 mm
Diameter	149 mm
Weight	850 g

Number of cameras	1
Mounting kit	Yes
Mounting brackets included	Yes
Drilling template included	Yes
Manual	Yes

Harmonized System (HS) code	85258900
