Produktbeskrivning

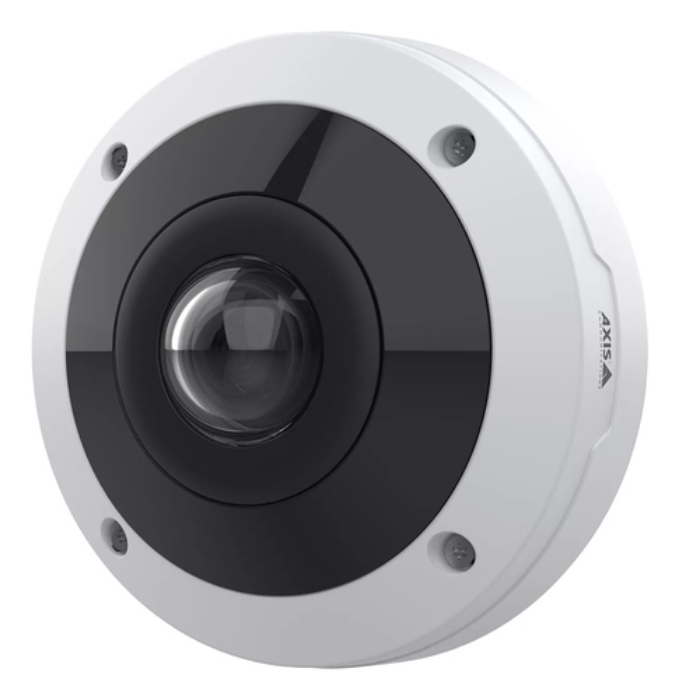

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.

360° view with just one camera
Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don’t need to invest in several cameras—with AXIS M4318-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there’s just one camera to install, one cable to drop, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.

Outstanding images
With a stereographic lens and Sharpdome 360, AXIS M4318-PLR delivers greater sharpness at the edges of the image. It features a 12 MP sensor and offers great image quality around the clock, regardless of the light conditions. Forensic WDR provides clarity when there’s both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.

Secure and easy
AXIS M4318-PLR offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with a deep learning processing unit (DLPU), this high-performance camera delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.



Viktiga egenskaper

Axis M4318-PLR. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Sensor type (panoramic camera): CMOS



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Alarm input/output	Yes
Built-in processor	Yes
Processor model	ARTPEC-8
Dynamic range	120 dB

Form factor	Dome
Mounting type	Ceiling/Pole
Product colour	White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Minimum illumination	0.04 lx
Lens viewing angle, horizontal	182 °
Lens viewing angle, vertical	182 °
Camera shutter speed	1/8100 - 0.5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.3 "
Progressive scan	Yes

Sensor type (panoramic camera)	CMOS

Fixed focus	Yes
Maximum aperture number	2.2
Fixed focal length	1.2 mm

Night vision	Yes
Night vision distance	15 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2992 x 2992 pixels
Total megapixels	12 MP
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1ar,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
DC-in jack	Yes

Video motion detection	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Network access storage (NAS)	Yes

Cloud-managed	Yes

Power source type	DC,PoE
Power consumption (typical)	6.4 W
Power consumption (max)	12.95 W
DC output voltage	12
DC output current	0.025 A

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	860 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
