Produktbeskrivning

Sharp images

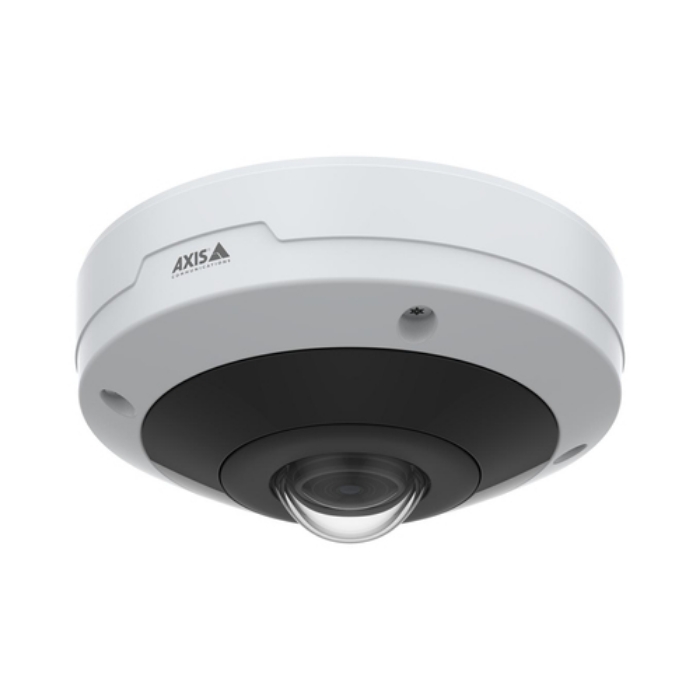

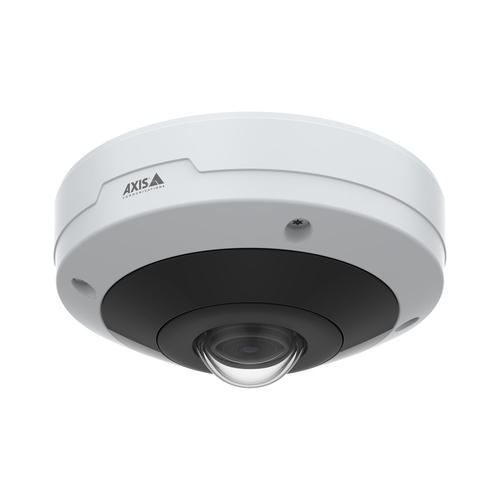

Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4318-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.

Deep learning on the edge

This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Secure and easy

Built on ARTPEC-8, AXIS M4318-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.



Viktiga egenskaper

Axis M4318-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point,Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	ENG,ESP,SWE,ITA,POL,THA,FIN,JPN,POR,TUR,CHI (SIMPL),FRE,CHI (TR),KOR,RUS,VIE,CZE,DEU,DUT
Number of languages	20

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Minimum illumination	0.04 lx
Lens viewing angle, horizontal	182 °
Lens viewing angle, vertical	182 °
Camera shutter speed	1/8100 - 1/2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.3 "
Progressive scan	Yes

Number of lenses	1
Fixed focus	Yes
Fixed focal length	2.2 mm

Night vision	Yes
Night vision distance	15 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2992 x 2992 pixels
Total megapixels	12 MP
Supported graphics resolutions	2048 x 1536 (QXGA),256 x 144,3840 x 2160,384 x 288,2560 x 1920,2880 x 2880
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Sharpness,Saturation

Audio system	2-way

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Active tampering alarm	Yes
Alert notification type	E-mail
HTTPS encryption	Yes
Human and vehicle targets classification	Yes
IP address filtering	Yes
Privacy protection	Yes
Security algorithms	TLS,256-bit AES-XTS,EAP-TLS
Video motion detection	Yes
Pixel counter	Yes
Digest authentication	Yes

Behavior analysis	Line crossing detection

Power source type	PoE
Power consumption (typical)	6.4 W
Power consumption (max)	12.95 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	149 mm
Depth	149 mm
Height	70 mm
Weight	860 g

Number of cameras	1
Manual	Yes

Compliance certificates	RoHS
Doesn't contain	PVC/BFR
