Produktbeskrivning

Great video performance

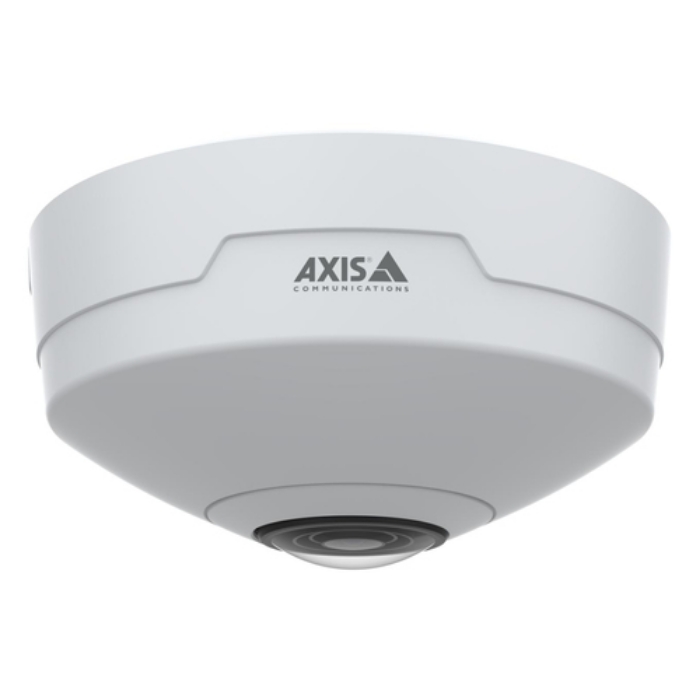

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.

Deep learning on the edge

This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Great look and ease of installation

This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.



Viktiga egenskaper

Axis M4328-P. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ,Preset point
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Number of languages	20

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic

Minimum illumination	0.04 lx
Lens viewing angle, horizontal	182 °
Lens viewing angle, vertical	182° °
Camera shutter speed	1/8100 - 1/2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.3 "
Progressive scan	Yes

Number of lenses	1
Fixed focus	Yes
Fixed focal length	2.2 mm

Maximum resolution	2992 x 2992 pixels
Total megapixels	12 MP
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	256 x 144,384 x 288,2048 x 1536 (QXGA),2560 x 1920,2880 x 2880,3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	2-way

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, C
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Digest authentication	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Privacy protection	Yes
Video motion detection	Yes
Human and vehicle targets classification	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Alert notification type	E-mail
Security algorithms	256-bit AES-XTS,EAP-TLS,TLS

Behavior analysis	Line crossing detection

Power source type	PoE
Power consumption (typical)	3.5 W
Power consumption (max)	5.1 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Width	101 mm
Depth	101 mm
Height	51 mm
Weight	300 g

Number of cameras	1
Manual	Yes

Doesn't contain	PVC/BFR
Compliance certificates	RoHS
