Produktbeskrivning

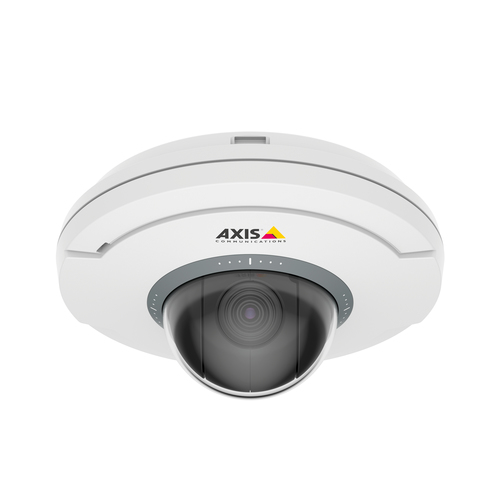

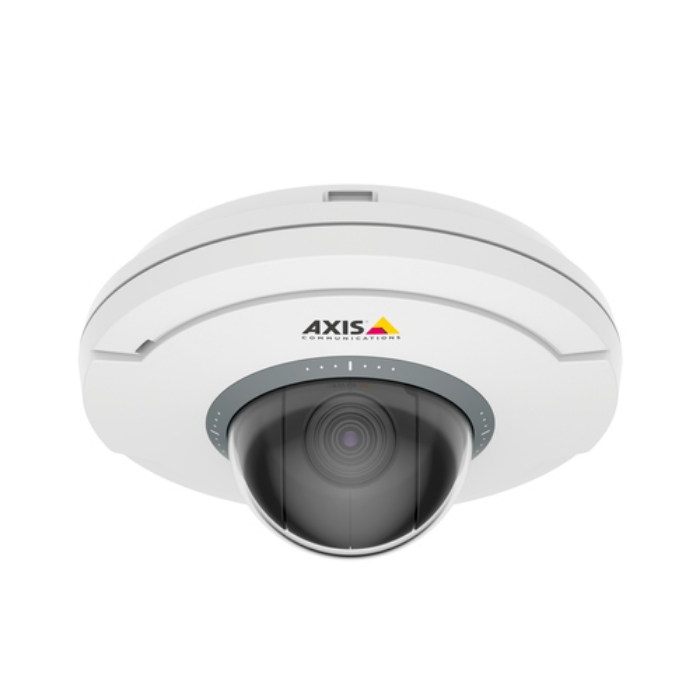

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 720p/1MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.



Viktiga egenskaper

Axis 02345-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 90°, Tilt speed: 100 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 - 11.0 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Day/night mode	Yes
Processor model	ARTPEC-7
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Number of languages	12
Certification	EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Housing material	Polyvinyl chloride (PVC)
International Protection (IP) code	IP51

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.1 lx
Tilt angle range	0 - 90 °
Tilt speed	100 °/sec
Pan range	-179 - 179 °
Pan speed	100 °/sec
Camera shutter speed	1/17000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	5 x
Digital zoom	12 x
Focal length range	2.2 - 11.0 mm
Auto focus	Yes

Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video formats supported	M-JPEG
Video compression formats	H.264,H.265
Supported video modes	720p
Video recording	Yes
Frame rate	60 fps
Video streaming	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Privacy masking	Yes
Bit rate	Configurable bit rate

Audio system	1-way
Audio formats supported	AAC-LC,ADPCM,LPCM,OPUS,PCM
Built-in microphone	Yes
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3af
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Flash memory	512 MB
Internal memory	1024 MB

Password protection	Yes
IP address filtering	Yes
Active tampering alarm	Yes
HTTPS encryption	Yes
Video motion detection	Yes
Security algorithms	EAP-TLS,HTTPS,SNMP
Alert notification type	E-mail

Power source type	PoE
Power consumption (typical)	4.2 W
Power consumption (max)	9.3 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 95 %

Diameter	130 mm
Length	63 mm
Weight	380 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes

Harmonized System (HS) code	85258900
