Produktbeskrivning

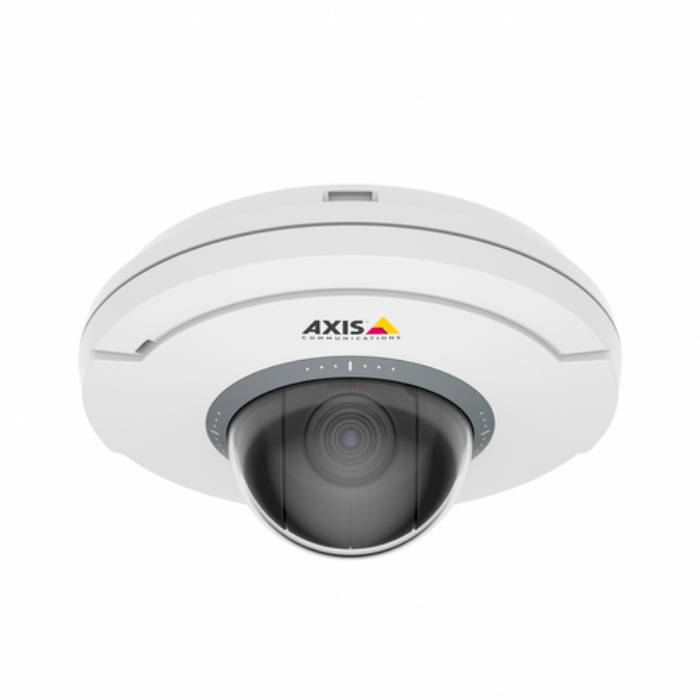

AXIS M5075 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 1080p/2 MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.



Viktiga egenskaper

Axis 02346-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 14 - 71°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 - 11 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Auto-tracking	No
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	No
Alarm input/output	No
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Number of languages	12
Plug and Play	Yes

Form factor	Dome
Mounting type	Ceiling
Product colour	White
LED indicators	Yes
International Protection (IP) code	IP51

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.1 lx
Angle of rotation	180 °
Lens viewing angle, horizontal	14 - 71 °
Lens viewing angle, vertical	8 - 40 °
Tilt angle range	0 - 90 °
Tilt speed	100 °/sec
Pan range	-179 - 179 °
Pan speed	100 °/sec
Camera shutter type	Electronic
Camera shutter speed	1/17000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	5 x
Digital zoom	12 x
Focal length range	2.2 - 11 mm
Auto focus	Yes
Minimum aperture number	1.4

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264,H.265
Supported graphics resolutions	320 x 180,1920 x 1080 (HD 1080)
Video recording	Yes
Frame rate	60 fps
Privacy masking	Yes
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation

Built-in microphone	Yes
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Digest authentication	Yes
HTTPS encryption	Yes
Alert notification type	E-mail
IP address filtering	Yes

Power source type	PoE

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 95 %

Width	130 mm
Depth	130 mm
Height	63 mm
Diameter	130 mm
Weight	380 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
Packaging content	AXIS M50 Mounting Kit, Installation Guide, Windows decoder 1-user license
