Produktbeskrivning

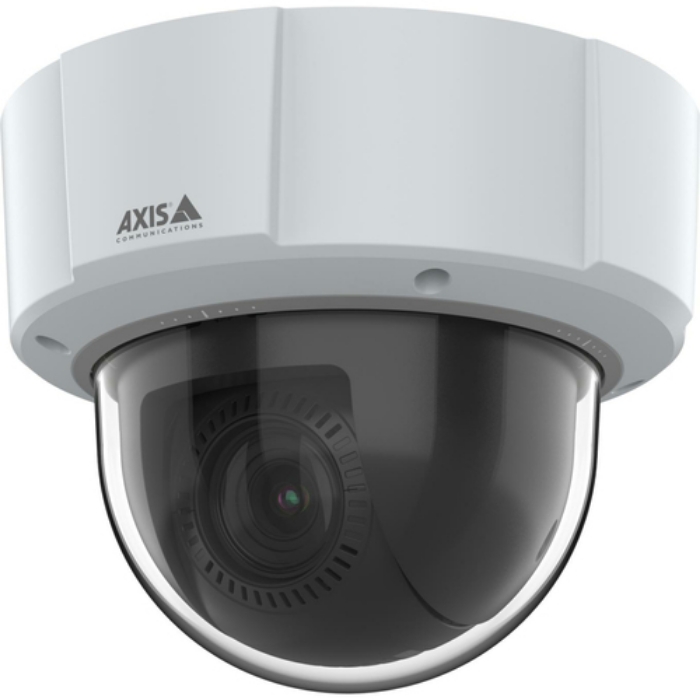

AXIS M5526-E PTZ Camera

Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.

Don’t miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there’s both dark and light areas in the scene.

Flexible installations—indoors and out

AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.

Enjoy more for less

This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.



Viktiga egenskaper

Axis M5526-E 50 Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 59.1 - 6.5°, Lens viewing angle, vertical: 35 - 3.67°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 10x, Digital zoom: 12x, Focal length range: 4.7 - 47 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Plastic,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK09

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Lens viewing angle, horizontal	59.1 - 6.5 °
Lens viewing angle, vertical	35 - 3.67 °
Tilt angle range	0 - 90 °
Tilt speed	150 °/sec
Pan range	0 - 360 °
Pan speed	150 °/sec
Camera pixel size	1.998 µm
Camera shutter speed	1/27000 - 0.2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/3 "

Number of lenses	1
Zoom capability	Yes
Optical zoom	10 x
Digital zoom	12 x
Focal length range	4.7 - 47 mm
Auto focus	Yes
Minimum aperture number	1.6
Maximum aperture number	3
Detect distance (tele)	938 m
Recognize distance (tele)	186 m
Identify distance (wide)	10 m
Observe distance (wide)	38 m
Identify distance (tele)	93 m
Recognize distance (wide)	19 m
Detect distance (wide)	96 m
Observe distance (tele)	373 m

Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	160 x 120,320 x 180,1600 x 1200 (UXGA)
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Privacy masking	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC-LC,G.711,LPCM,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP,
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
ROM capacity	1024 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Pixel counter	Yes
Human and vehicle targets classification	Yes
Active tampering alarm	Yes
Video motion detection	Yes
Alert notification type	E-mail
Intelligent Video Surveillance (IVS) system features	Face detection,Human detection,Line crossing detection,Moving object,Vehicle detection
Security algorithms	802.1x RADIUS,EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS

Power source type	PoE
Power consumption	3.8 mA
Power consumption (typical)	4.2 W
Power consumption (max)	11.7 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	15 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	165 mm
Depth	165 mm
Height	150 mm
Weight	1000 g

License plate recognition	Yes

Number of cameras	4
Manual	Yes

Compliance certificates	REACH,RoHS
Doesn't contain	PVC/BFR
