Produktbeskrivning

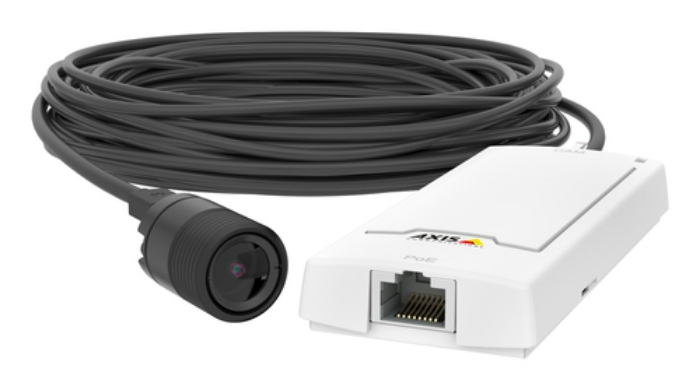

AXIS P1245 is a cost-effective complete modular camera with HDTV 1080p resolution, ideal for discreet indoor surveillance in stores and banks. It can be installed in tight places or flush-mounted in a wall, ceiling, or metal panel with only a small hole visible for the lens, suitable in, for example, ATMs or vending machines. Equipped with WDR – Forensic Capture, enables the camera to handle scenes with strong variations in light. AXIS P1245 comes with a mounting bracket and an 8 meter (26 feet) detachable cable.
Viktiga egenskaper
Axis 0926-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Covert. Minimum illumination: 0.22 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 61°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Maximum resolution: 1920 x 1020 pixels, Video compression formats: H.264, Supported graphics resolutions: 1920 x 1080 (HD 1080)
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor |
|---|
| Connectivity technology | Wired |
|---|
Design
| Form factor | Covert |
|---|
| Mounting type | Ceiling/Wall/Desk |
|---|
| Product colour | White |
|---|
| Housing material | Plastic,Steel |
|---|
Camera
| Minimum illumination | 0.22 lx |
|---|
| Lens viewing angle, horizontal | 111 ° |
|---|
| Lens viewing angle, vertical | 61 ° |
|---|
| Camera shutter speed | 1/32500 - 1/25 s |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Optical sensor size | 1/3 " |
|---|
Video
| Maximum resolution | 1920 x 1020 pixels |
|---|
| Video compression formats | H.264 |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
|---|
| Supported video modes | 1080p |
|---|
| Frame rate | 30 fps |
|---|
| Full HD | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | No |
|---|
| Ethernet interface type | Fast Ethernet |
|---|
| Networking standards | IEEE 802.3af,IEEE 802.3at |
|---|
| Supported network protocols | IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
|---|
Storage
| Built-in HDD | No |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Security
| HTTPS encryption | Yes |
|---|
| IP address filtering | Yes |
|---|
| Security algorithms | 802.1x RADIUS,HTTPS |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (typical) | 2.5 W |
|---|
| Power consumption (max) | 4 W |
|---|
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 85 % |
|---|
Weight & dimensions
| Width | 46 mm |
|---|
| Depth | 109 mm |
|---|
| Height | 16.5 mm |
|---|
| Weight | 72 g |
|---|
Packaging content
| Number of cameras | 1 |
|---|
| Mounting brackets included | Yes |
|---|
| Quick installation guide | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85258900 |
|---|
