Produktbeskrivning

AXIS P1265 Mk II Modular Pinhole Camera

Ideal for mounting in tight spaces, this indoor modular camera includes a tiny, pinhole-sized sensor unit for extremely discreet installation. Featuring a deep learning processing unit, it enables the use of advanced analytics.

Highly discreet

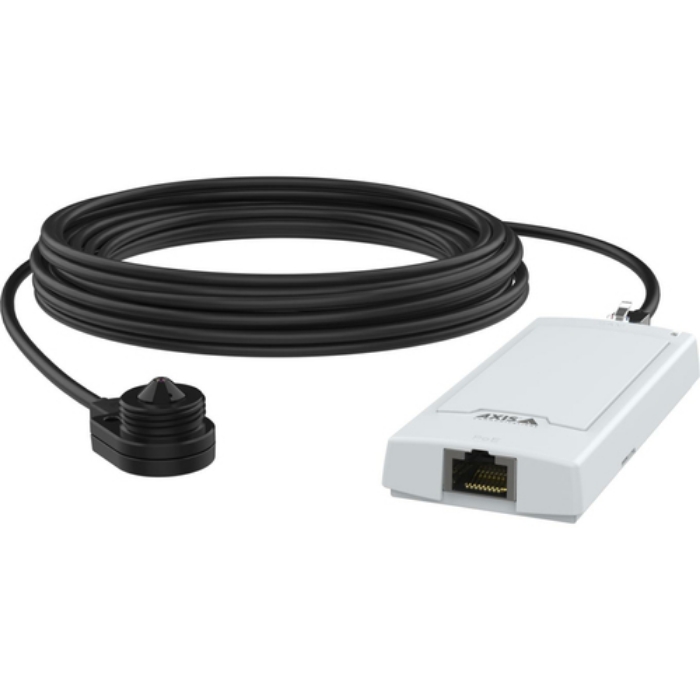

AXIS P1265 Mk II Modular Pinhole Camera includes a tiny sensor unit that’s easy to install and hard to notice. In fact, only a tiny pinhole is visible externally. This sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

Highly flexible

Based on the divided modular camera concept, AXIS P1265 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it’s easy to integrate with other devices. This indoor modular camera system includes a tiny pinhole sensor unit that suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade

Great image quality and support for advanced analytics

AXIS P1265 Mk II offers HDTV 1080p with a 91° horizontal field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. With support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy.



Viktiga egenskaper

Axis P1265 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Covert. Minimum illumination: 0.2 lx, Lens viewing angle, horizontal: 91°, Lens viewing angle, vertical: 45°. Sensor type: CMOS. Fixed focal length: 3.7 mm, Closest focusing distance: 0.2 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes

Form factor	Covert
Mounting type	Ceiling
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic,Steel
International Protection (IP) code	IPX3

Minimum illumination	0.2 lx
Lens viewing angle, horizontal	91 °
Lens viewing angle, vertical	45 °
Camera shutter speed	1/6500 - 1/5 s

Sensor type	CMOS
Number of sensors	1

Number of lenses	1
Maximum aperture number	2.5
Closest focusing distance	0.2 m
Fixed focal length	3.7 mm

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	480 x 360,640 x 360,1024 x 640,1024 x 768 (XGA),1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Flip & mirror	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Privacy masking	Yes

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, A
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Pixel counter	Yes
Human and vehicle targets classification	Yes
Video motion detection	Yes
Security algorithms	802.1x RADIUS,EAP-TLS,HTTPS,PEAP,TLS
Alert notification type	E-mail
Intelligent Video Surveillance (IVS) system features	Face detection,Human detection,Vehicle detection

Behavior analysis	Line crossing detection,Scene change detection

Power source type	PoE
Power consumption (typical)	3.4 W
Power consumption (max)	4.1 W

Operating temperature (T-T)	-20 - 45 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	75 g

Number of cameras	1
Manual	Yes

Doesn't contain	PVC
Compliance certificates	RoHS
