Produktbeskrivning

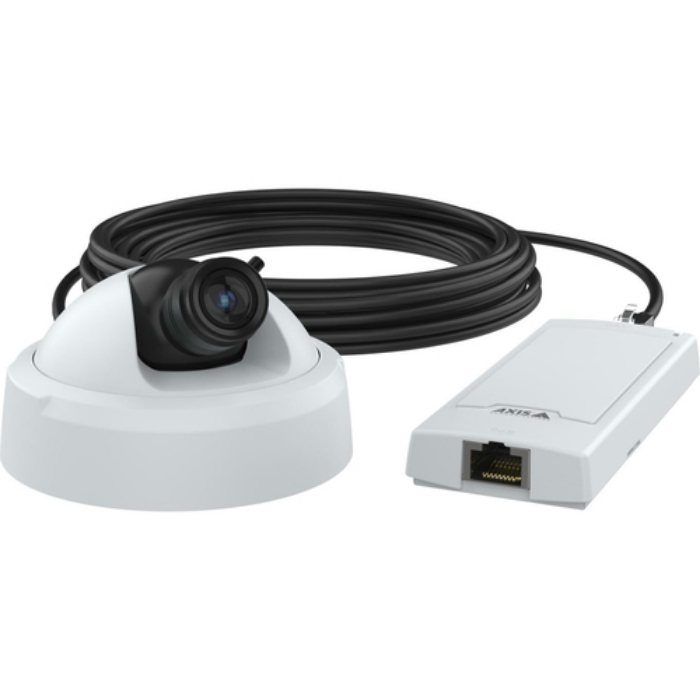

AXIS P1275 Mk II Modular Varifocal Dome Camera

This modular camera includes a small main unit and mini dome. It offers a 99°- 53° field of view so you can choose between clear overviews and detailed close-ups. A deep learning processing unit enables the use of advanced analytics.

Discreet

AXIS P1275 Mk II Modular Varifocal Dome Camera includes a small main unit and a mini dome sensor. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

Highly flexible

Based on the divided modular camera concept AXIS P1275 Mk II is ideal for installation in tight spaces where larger surveillance cameras won’t fit. With a small main unit that connects via cable to a mini dome sensor, the two parts can be placed up to 15 m away from each other enabling a more flexible installation. Plus, it’s easy to integrate with other devices. This modular camera system suits a wide range of indoor applications such as video surveillance in ATM lobbies, gas stations, ticketing machines, self-checkouts, and automated parcel lockers. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade.

Great image quality and support for advanced analytics

AXIS P1275 Mk II offers 1080p and with a 2.8-6 mm varifocal lens, you can easily adjust the field of view and move between clear overviews and detailed close-ups. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. A deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. With support for ACAP, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy.



Viktiga egenskaper

Axis P1275 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.2 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 99 - 53°. Sensor type: CMOS. Focal length range: 2.8 - 6 mm, Closest focusing distance: 0.1 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic,Steel
International Protection (IP) code	IPX3

Minimum illumination	0.2 lx
Angle of rotation	360 °
Lens viewing angle, horizontal	99 - 53 °
Lens viewing angle, vertical	53 - 30 °
Tilt angle range	0 - 90 °
Pan range	0 - 360 °
Camera shutter speed	1/6500 - 1/5 s

Sensor type	CMOS
Number of sensors	1

Number of lenses	1
Focal length range	2.8 - 6 mm
Maximum aperture number	2
Closest focusing distance	0.1 m

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	480 x 360,640 x 360,1024 x 640,1024 x 768 (XGA),1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Flip & mirror	Yes
Text caption overlay	Yes
Privacy masking	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, A
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Pixel counter	Yes
Human and vehicle targets classification	Yes
Video motion detection	Yes
Intelligent Video Surveillance (IVS) system features	Face detection,Human detection,Vehicle detection
Alert notification type	E-mail
Security algorithms	802.1x RADIUS,EAP-TLS,HTTPS,PEAP,TLS

Behavior analysis	Line crossing detection,Scene change detection

Power source type	PoE
Power consumption (typical)	3.4 W
Power consumption (max)	4.1 W

Operating temperature (T-T)	-20 - 45 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	75 g

Number of cameras	1
Manual	Yes

Compliance certificates	RoHS
Doesn't contain	PVC
