Produktbeskrivning

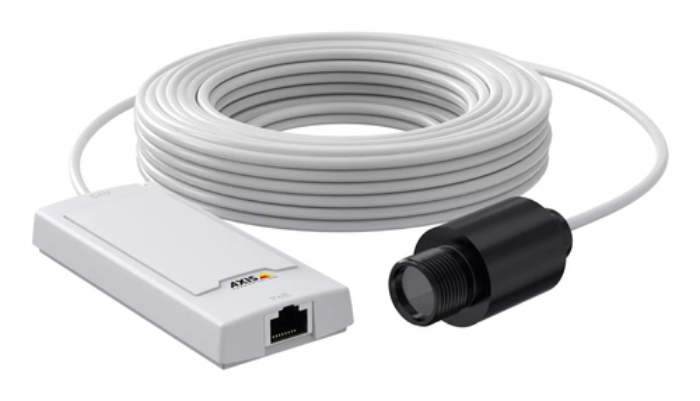

AXIS P1280-E is a cost-effective indoor/outdoor thermal camera that ensures reliable detection with a low rate of false alarms. The camera can be used as a surveillance sensor that doesn’t compromise personal integrity. It features a choice of lenses to meet your specific requirements; a 2.2 mm lens for wide-angle views and a 4 mm lens for narrower views with longer detection distances. AXIS P1280-E comes with built-in analytics as well as support for AXIS Perimeter Defender and 3rd party analytics. The flexible and highly discreet design allows for versatile installation: behind surfaces for discreet surveillance, on walls, or recessed.



Viktiga egenskaper

Axis 0940-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 35.4°, Lens viewing angle, vertical: 28°. Sensor type: Microbolometer. Fixed focal length: 4 mm



Teknisk specifikation

Placement supported	Indoor & outdoor
Connectivity technology	Wired

Form factor	Bullet
Mounting type	Pole clamp
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP67

Lens viewing angle, horizontal	35.4 °
Lens viewing angle, vertical	28 °

Sensor type	Microbolometer

Maximum aperture number	1.2
Fixed focal length	4 mm

Maximum resolution	640 x 480 pixels
Video compression formats	H.264,M-JPEG,MPEG4
Frame rate	8.3 fps
Video streaming	Yes
Image quality adjustment	Brightness,Contrast,Sharpness

Ethernet LAN	Yes
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	Pv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMPv1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Cabling technology	10/100Base-T(X)
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Maximum memory card size	64 GB
Flash memory	256 MB
Internal memory	512 MB

Ethernet LAN (RJ-45) ports	1

HTTPS encryption	Yes
IP address filtering	Yes

Power source type	PoE
Power consumption (typical)	2.5 W
Power consumption (max)	4 W
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %

Width	165 mm
Depth	46 mm
Height	109 mm
Weight	72 g

Number of cameras	1

Harmonized System (HS) code	85258900
