Produktbeskrivning

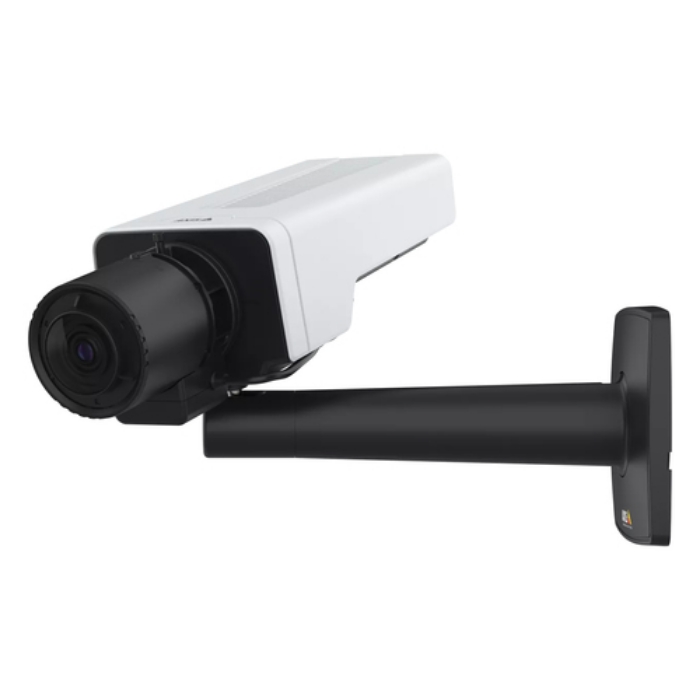

This box camera delivers excellent 5 MP image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.

A camera you can count on
With electronic image stabilization, AXIS P1387 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you’ll be informed if there’s any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it’s designed to fit into outdoor housing.

More light or less
With an exchangeable lens and i-CS support, you can easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 5 MP. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.

Secure and powerful
AXIS P1387 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different types of objects. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.



Viktiga egenskaper

Axis P1387. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 24 - 112°, Lens viewing angle, vertical: 18 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm, Detect distance (wide): 56.2 m, Detect distance (tele): 244.2 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in processor	Yes
Processor model	ARTPEC-8
Dynamic range	120 dB
Languages support	Multi

Form factor	Box
Mounting type	Wall
Product colour	White
Housing material	Aluminium

Minimum illumination	0.008 lx
Lens viewing angle, horizontal	24 - 112 °
Lens viewing angle, vertical	18 - 80 °
Camera pixel size	2 µm
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.7 "

Number of lenses	1
Focal length range	2.8 - 13 mm
Auto focus	Yes
Minimum aperture number	1.4
Observe distance (tele)	96.9 m
Observe distance (wide)	22.3 m
Identify distance (tele)	24.4 m
Detect distance (wide)	56.2 m
Recognize distance (tele)	48.8 m
Recognize distance (wide)	11.2 m
Detect distance (tele)	244.2 m
Identify distance (wide)	5.6 m

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video compression formats	H.264,H.265,M-JPEG,MPEG4
Supported graphics resolutions	160 x 120,160 x 90,2592 x 1944
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image stabilizer	Yes
Privacy masking	Yes
Flip & mirror	Yes
Image quality adjustment	Brightness,Contrast,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	2-way
Audio formats supported	G.711,G.726,LPCM,OPUS
Signal-to-Noise Ratio (SNR)	55 dB
Built-in microphone	Yes
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
RS-422 ports	1
RS-485 ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Alarm input channels	2
Alarm output channels	2
Active tampering alarm	Yes
Video motion detection	Yes
Intelligent Video Surveillance (IVS) system features	Face detection,Human detection,Line crossing detection,Scene change,Vehicle detection

Power source type	DC,PoE
Power consumption (typical)	4.26 W
Power consumption (max)	10.57 W
Power consumption (Power over Ethernet (PoE))	11.73 W
DC output voltage	10,28

Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Width	80 mm
Depth	225 mm
Height	63.5 mm
Weight	480 g
Weight (with stand)	775 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
Terminal block included	Yes

Doesn't contain	BFR
Compliance certificates	CE,EAC,KC,RCM,REACH,RoHS,UKCA,UL,VCCI,cUL
