Produktbeskrivning

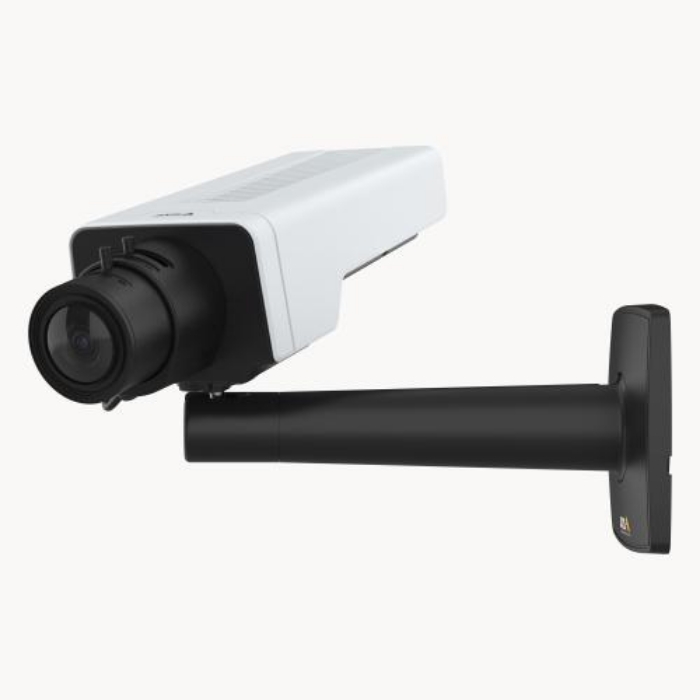

This box camera delivers excellent 4K image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.

A camera you can count on
With electronic image stabilization, AXIS P1388 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you’ll be informed if there’s any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it’s designed to fit into outdoor housing.

More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 4K. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.

Secure and powerful
AXIS P1388 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different types of objects. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.



Viktiga egenskaper

Axis 02737-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 122 - 46°, Lens viewing angle, vertical: 64 - 26°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 3.9 - 10 mm, Detect distance (wide): 78.7 m, Detect distance (tele): 193.5 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Box
Mounting type	Wall
Product colour	Black,White

Minimum illumination	0.03 lx
Lens viewing angle, horizontal	122 - 46 °
Lens viewing angle, vertical	64 - 26 °
Camera pixel size	2 µm
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Optical sensor size	1/1.8 "
Progressive scan	Yes

Focal length range	3.9 - 10 mm
Recognize distance (tele)	38.7 m
Identify distance (wide)	7.9 m
Detect distance (wide)	78.7 m
Identify distance (tele)	19.4 m
Observe distance (wide)	31.2 m
Recognize distance (wide)	15.7 m
Detect distance (tele)	193.5 m
Observe distance (tele)	76.8 m

Night vision	No

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	H.264,H.265,M-JPEG
Frame rate	60 fps
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image stabilizer	Yes

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLS b , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD
Flash memory	8192 MB
Internal memory	2048 MB

Security algorithms	EAP-TLS,MSCHAPv2,PEAP,TLS

Power source type	DC,PoE
Power consumption (typical)	4.5 W
Power consumption (max)	11.1 W
DC output voltage	12,28

Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	470 g
Weight (with stand)	765 g

Number of cameras	1
