Produktbeskrivning

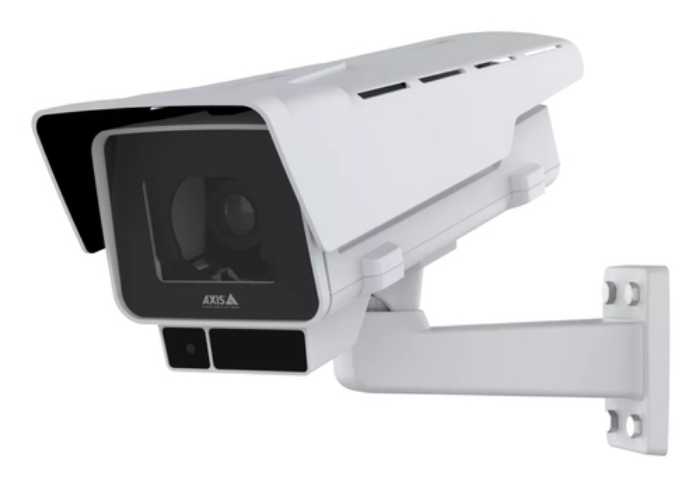

This robust, outdoor camera has a clear deterrent effect. It offers excellent 8 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.

Made for the great outdoors
This IP66-, IP67-, IK10- and NEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images. AXIS P13 Weathershield Extension A is also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.

More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 4K. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. And it offers P-Iris for images with better contrast, clarity, resolution, and depth of field. Additionally, OptimizedIR enables surveillance in total darkness up to 50 m (164 ft). And, with shock detection and a tampering alarm, you’ll be informed if there are any attempts to interfere with the camera.

Secure and powerful
AXIS P1388-LE offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.



Viktiga egenskaper

Axis P1388-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.13 lx, Angle of rotation: 270°, Vertical field of view (thermal module): 64°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM

Form factor	Box
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Plastic
Protection features	Impact resistant
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.13 lx
Horizontal field of view (thermal module)	122 - 46 °
Vertical field of view (thermal module)	64 °
Angle of rotation	270 °
Camera pixel size	2 µm
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "
Progressive scan	Yes

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Focal length range	3.9 - 10 mm
Auto focus	Yes
Observe distance (wide)	31.2 m
Recognize distance (tele)	38.7 m
Identify distance (wide)	7.9 m
Identify distance (tele)	19.4 m
Observe distance (tele)	76.8 m
Detect distance (wide)	78.7 m
Detect distance (tele)	193.5 m
Recognize distance (wide)	15.7 m

Night vision	Yes
Night vision distance	40 m
B/W night vision distance	40 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Video formats supported	H.264,H.265
Supported graphics resolutions	160 x 90,3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	1-way
Audio system full duplex	Yes
Audio formats supported	AAC,G.711,OPUS,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS 2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Video motion detection	Yes
Human and vehicle targets classification	Yes

Power source type	PoE
Power consumption (typical)	9.1 W
Power consumption (max)	25.5 W
DC output voltage	10,28

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	2460 g
Weight (with stand)	3340 g

Number of cameras	1
Manual	Yes

Safety warning	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252
Doesn't contain	BFR,CFR,PVC
Compliance certificates	Trade Agreements Act (TAA)
