Produktbeskrivning

Compact and cost-effective HDTV surveillance for any light condition

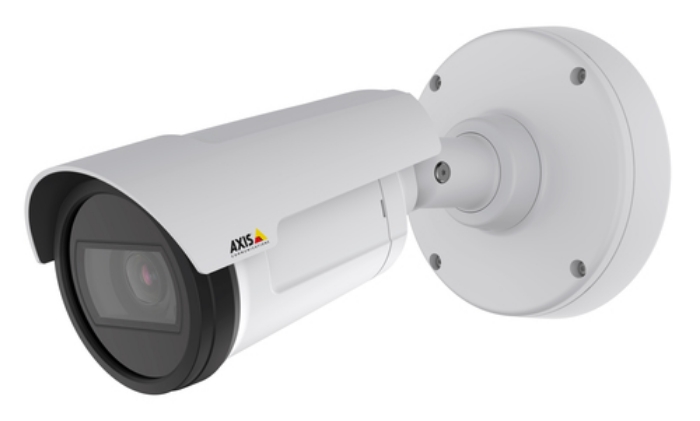

With features such as Lightfinder and WDR – Forensic Capture, the bullet-style AXIS P1435-LE provides excellent image quality in HDTV 1080p resolution, even in complex light conditions. In addition, the camera supports Axis’ Corridor Format, pixel counter, remote zoom and focus, as well as P-Iris control. The day and night camera is ideal for 24/7 video surveillance, in exposed outdoor areas such as parking lots and service stations, and for general indoor surveillance purposes wherever a compact camera is needed.

Excellent image quality

AXIS P1435-LE with its varifocal, P-Iris lens provides excellent image quality at up to 60 frames per second. The P-Iris control provides optimal depth of field, resolution, image contrast and clarity.

Lightfinder and Wide Dynamic Range (WDR)


With Wide Dynamic Range – Forensic Capture, the camera provides perfectly balanced video quality in scenes with strong variations in light, while Axis’ Lightfinder technology enables outstanding image usability in poor light. The camera can seamlessly transition between handling WDR and low-light conditions.

Built-in IR-LEDs and OptimizedIR

AXIS P1435-LE offers OptimizedIR, Axis’ power-efficient LED technology that provides an adaptable angle of IR illumination. With OptimizedIR, the camera provides automatic illumination of a scene in complete darkness, in case of an event or when requested by a user. The improved IR LED illumination is perfect for discovering objects in a range of up to 30 meters (100 ft).

Edge storage and Zipstream

AXIS P1435-LE offers support for edge storage that makes it possible to record video directly to a storage such as a microSD/SDHC card, thereby creating a flexible and reliable video surveillance system. In addition, Axis’ Zipstream technology lowers bandwidth and storage requirements by an average of 50% without costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream while unnecessary data can be removed.

Ease of installation

AXIS P1435-LE has a compact, low weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available. AXIS P1435-LE offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.

I/O ports

The input/output ports can be used for simple notification to an alarm panel or control of a relay. The input is also ideal when using a PIR motion detector.



Viktiga egenskaper

Axis P1435-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 95°, Lens viewing angle, vertical: 51°, White balance: Auto. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.5x, Focal length range: 3 - 10.5 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Languages support	CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,KAZ,POR,RUS
Number of languages	10
Certification	EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 50121-4, IEC 62236-4, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
LED indicators	Yes
Housing material	Polyester
International Protection (IP) code	IP66

Minimum illumination	0 lx
Lens viewing angle, horizontal	95 °
Lens viewing angle, vertical	51 °
White balance	Auto
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Yes

Zoom capability	Yes
Optical zoom	3.5 x
Focal length range	3 - 10.5 mm
Auto focus	Yes
Focus adjustment	1.4

Night vision	Yes
Night vision distance	30 m
LED type	IR

Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264,M-JPEG,MPEG4
Supported graphics resolutions	160 x 90,1920 x 1080 (HD 1080)
Supported video modes	1080p
Full HD	Yes
Text caption overlay	Yes
Privacy masking	Yes

Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	256 MB
Internal memory	512 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
Interface	RJ-45

Password protection type	User
Motion sensor	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Alert notification type	E-mail
Security algorithms	802.1x RADIUS,HTTPS,SSH,SSL/TLS

Web-based management	Yes
Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	4.6 W
Power consumption (max)	11 W
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Windows operating systems supported	Yes

Width	132 mm
Depth	260 mm
Height	132 mm
Weight	900 g

Mounting brackets included	Yes
Quick installation guide	Yes
Bundled software	AXIS Camera Companion, AXIS Camera Station

USB connectivity	No

Iris	Yes
Power source	PoE
