Produktbeskrivning

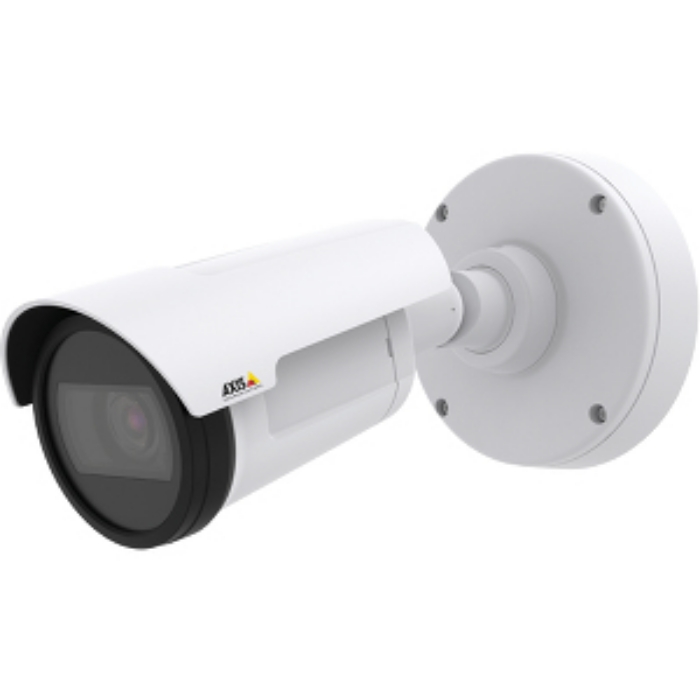

The bullet-style AXIS P1435-LE provides excellent image quality in HDTV 1080p resolution and offers two lens alternatives for wide or tele. The day and night camera is ideal for 24/7 video surveillance, in exposed outdoor areas such as parking lots and service stations, and for general indoor surveillance purposes wherever a compact camera is needed.

Excellent image quality
With a varifocal, P-Iris lens, AXIS P1435-LE provides excellent image quality at up to 60 frames per second. The P-Iris control provides optimal depth of field, resolution, image contrast and clarity. The camera offers two lens alternatives; a wide 3-10.5 mm lens for wide area surveillance and a tele 10-22 mm lens for telephoto zoom or surveillance from a distance. In addition, the camera supports Axis’ Corridor Format, pixel counter, remote zoom and focus.


Lightfinder and WDR – Forensic Capture
With Wide Dynamic Range – Forensic Capture, the camera provides perfectly balanced video quality in scenes with strong variations in light, while Axis’ Lightfinder technology enables outstanding image usability in poor light. The camera can seamlessly transition between handling WDR and low-light conditions.

Built-in IR-LEDs and OptimizedIR
AXIS P1435-LE offers OptimizedIR, Axis’ power-efficient LED technology that provides an adaptable angle of IR illumination. In low light, OptimizedIR,automatically adapts the exposure of the camera resulting in high-quality and low-noise video. The improved IR LED illumination is perfect for discovering objects in a range of up to 30 meters (100 ft) using the wide 3-10.5 mm lens or 50 meters (164 ft) using the 10-22 mm tele lens.


Edge storage and Zipstream
AXIS P1435-LE offers support for edge storage that makes it possible to record video directly to a storage such as a microSD/SDHC™* card, thereby creating a flexible and reliable video surveillance system. In addition, Axis’ Zipstream technology lowers bandwidth and storage requirements by an average of 50% without costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream, while unnecessary data can be removed.


Ease of installation
AXIS P1435-LE has a compact, low weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available such as AXIS Weather Shield K for protection against sun and rain. AXIS P1435-LE offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.

I/O ports
The input/output ports can be used for simple notification to an alarm panel or control of a relay. The input is also ideal when using a PIR motion detector.



Viktiga egenskaper

Axis P1435-LE 22MM. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 270°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). LED type: IR



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
Housing material	Polyester
International Protection (IP) code	IP67

Minimum illumination	0 lx
Angle of rotation	270 °

Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Yes

Auto focus	Yes

LED type	IR

Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Video compression formats	H.264
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	60 fps
Image quality adjustment	Brightness,Colour depth,Contrast,Sharpness

Networking standards	IEEE 802.1x

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	256 MB
Internal memory	512 MB

Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Motion sensor	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Video motion detection	Yes

Power over Ethernet (PoE)	Yes

Diameter	132 mm
Length	260 mm
Weight	800 g

Number of cameras	1
Mounting brackets included	Yes
Sun shield included	Yes
Quick installation guide	Yes
