Produktbeskrivning

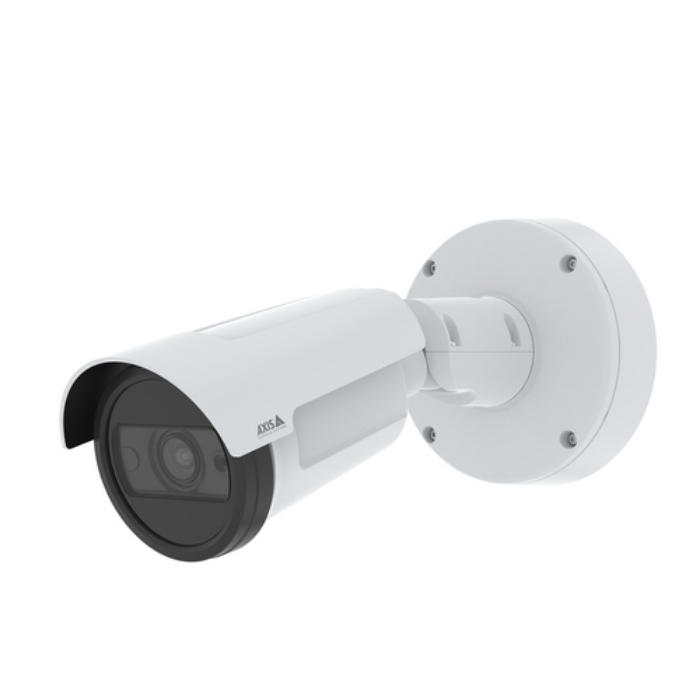

Based on ARTPEC-8, AXIS P1467-LE delivers excellent image quality in 5 MP. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics preinstalled, it offers detection and classification of humans, vehicles, and types of vehicles. This IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR, ensure sharp, detailed images under any light conditions. Furthermore, it includes Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis products on your network.



Viktiga egenskaper

Axis 02341-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.13 lx, Camera shutter speed: 1/50000 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 8 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Number of languages	12
Certification	EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10
Weatherproof	Yes

Minimum illumination	0.13 lx
Camera shutter speed	1/50000 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Focal length range	2.8 - 8 mm

Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video compression formats	H.264,H.265
Supported graphics resolutions	1280 x 720 (HD 720)
Supported video modes	720p
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Privacy masking	Yes
Text caption overlay	Yes
Flip & mirror	Yes
Bit rate	Configurable bit rate

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS
Quality of Service (QoS) support	Yes

Built-in HDD	No
Built-in SSD	No
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD
Flash memory	8000 MB
Internal memory	2000 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Password protection	Yes
Digest authentication	Yes
Pixel counter	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Video motion detection	Yes
IP address filtering	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS
Alert notification type	E-mail,Text alert message

Power source type	PoE
Power consumption (typical)	5.8 W
Power consumption (max)	12.9 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Windows operating systems supported	Yes

Width	280 mm
Depth	280 mm
Diameter	132 mm
Weight	1200 g

Number of cameras	1
Mounting brackets included	Yes
Drilling template included	Yes
Manual	Yes

Doesn't contain	BFR,PVC
