Produktbeskrivning

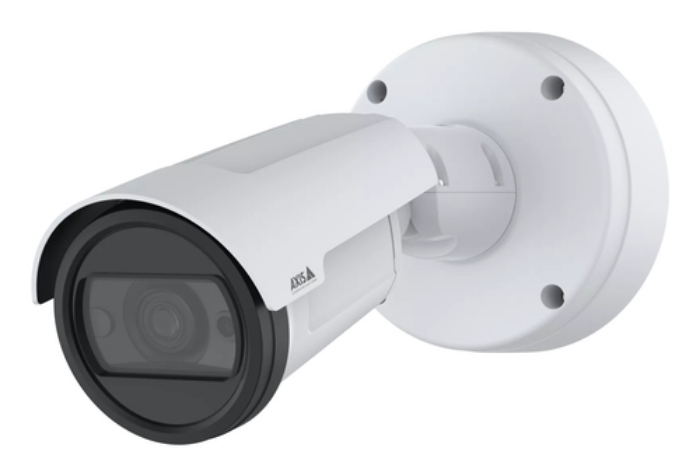

This robust, fully featured, AI-powered bullet camera delivers excellent 2 MP image quality in any light conditions. Built on ARTPEC-9, it supports AV1 codec and offers accelerated performance to run impressive analytics applications on the edge.

Outstanding image quality in any light
AXIS P1485-LE offers excellent image quality and forensic details in 2 MP at 60 fps, even in harsh weather and environments. It features OptimizedIR for surveillance in pitch darkness up to 50 m (164 ft). And Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, it features a 10-28 mm telephoto lens with a 29°–11° horizontal field of view for surveillance from a distance.

Robust with strong security
This impact-resistant, IK10-, IP66-, 67-, and NEMA 4X-rated outdoor-ready camera can handle extreme temperatures from -40°C to 60 °C (-40 to 140°F) and withstand winds up to 60 m/s (134 mph). It can be powered with DC and PoE for power redundancy. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operation. In addition, electronic image stabilization provides smooth video in situations where a camera is subject to vibrations. What’s more, this robust camera is easy to install, maintain, and operate. For instance, it includes auto rotation and remote zoom and focus.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With ARTPEC-9, this application offers enhanced performance at greater distances. AXIS Image Health Analytics will notify you if the image is blocked, degraded, under-exposed, or redirected. And AXIS Live Privacy Shield addresses privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy.



Viktiga egenskaper

Axis P1485-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 10.8 - 28.2 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Alarm input/output	Yes
Built-in processor	Yes
Processor model	ARTPEC-9
Dynamic range	120 dB

Form factor	Bullet
Mounting type	Pole clamp
Product colour	White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.01 lx
Lens viewing angle, horizontal	29.4 - 11 °
Lens viewing angle, vertical	16.5 - 6.3 °
Camera pixel size	2.9 µm
Camera shutter speed	1/37000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Zoom capability	Yes
Focal length range	10.8 - 28.2 mm
Auto focus	Yes
Minimum aperture number	1.7
Maximum aperture number	1.76

Night vision	Yes
Night vision distance	80 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	AV1,H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image stabilizer	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance

Audio system	2-way
Audio system full duplex	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1ar,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Network access storage (NAS)	Yes
Pixel counter	Yes
Video motion detection	Yes

Cloud-managed	Yes

Power source type	DC,PoE
Power consumption (max)	12.95 W
DC output voltage	10,12,15,16,24,28

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	1380 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
