Produktbeskrivning

Ideal for building and perimeter protection, this dual-sensor, AI-powered box camera offers both wide-angle and close-up views of the same scene. It delivers excellent image quality under challenging light conditions.

Excellent wide-angle and close-up images 24/7

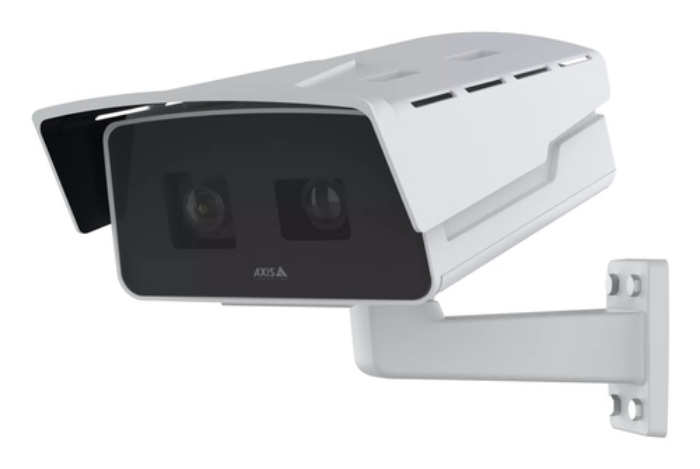

AXIS P1518-E lets you see it all. With two sensors, you get both wide-angle and close-up views of the same scene. One 1/1.2” image sensor offers exceptional low-light sensitivity and 8 MP at 30 fps for excellent wide-angle images . The other 1/2.8” sensor delivers 2 MP at 60 fps for close-up images without motion blur. It’s perfect at entrances and property fences, where you can monitor the wide-angle overview and get a close-up view of anyone approaching. In addition, Lightfinder 2.0 and Forensic WDR ensure true colors and great forensic detail in challenging light or near darkness.

Smart investment: cost-efficient and robust
AXIS P1518-E offers easy installation with lower total cost of ownership. With two sensors in one camera, there’s only one camera to install, one cable to draw, one IP address, one VMS license, and one license for any analytics you choose to install. Plus, you only need to maintain one camera. Thanks to remote zoom and focus capabilities, it ensures fast and accurate installation. Robust and outdoor-ready, it can be installed, for instance, at intersections to monitor traffic flow and capture vehicle details. Furthermore, this IP66-, IP67-, IK10- and NEMA 4X-rated camera can withstand hurricane winds up to 60 m/s (134 mph).

AI-powered analytics with strong security
This high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled, it can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.



Viktiga egenskaper

Axis P1518-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 113.8 - 45.5°, Lens viewing angle, vertical: 61.9 - 25.8°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). LED type: IR



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Processor model	ARTPEC-8
Built-in processor	Yes

Form factor	Box
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Plastic
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Lens viewing angle, horizontal	113.8 - 45.5 °
Lens viewing angle, vertical	61.9 - 25.8 °
Tilt angle range	-15 - 15 °
Pan range	-15 - 15 °

Sensor type	CMOS
Number of sensors	2
Optical sensor size	1/1.2 "

Zoom capability	Yes

Night vision	Yes
LED type	IR

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance
Text caption overlay	Yes

Audio system	2-way
Audio system full duplex	Yes
Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1ar,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
RS-485 ports	2
Terminal block port	Yes
DC-in jack	Yes

Cloud-managed	Yes

Power source type	DC,PoE
Power consumption (typical)	13.2 W
Power consumption (max)	25.5 W
DC output voltage	10,12,15,16,24,28

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	3650 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
