Produktbeskrivning

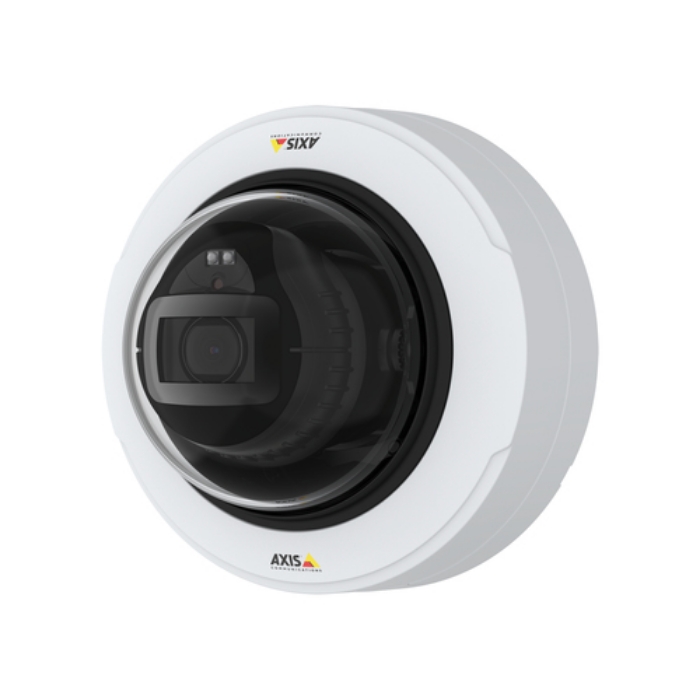

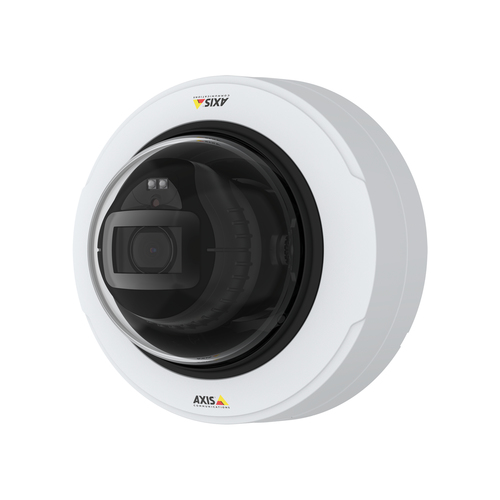

AXIS P3248-LV is a robust fixed dome camera that delivers brilliant 4K resolution in any light. This streamlined camera offers cost-efficient installation making it ideal for various surveillance situations, such as in data centers, logistic centers and high-end retail stores.
Excellent image quality- in any light
AXIS P3248-LV offers excellent image quality with brilliant 4K resolution at up to 30 fps. It features Axis Lightfinder 2.0 and Axis Forensic WDR to deliver true colors and great detail in challenging light or near darkness. And, with OptimizedIR you’ll enjoy clear, reflection-free footage in complete darkness without the need for extra lighting. Featuring motion-adaptive exposure, it ensures sharp video by significantly reducing the motion blur from approaching or nearby objects. And, with a varifocal lens and remote zoom and focus capabilities, there’s no need for hands-on fine tuning. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Stay on top of it all
AXIS P3248-LV includes AXIS Object Analytics so you can detect and classify humans and vehicles entering a user-defined area or crossing a user-defined virtual line. It’s easy to add audio capabilities by connecting a microphone and speaker allowing you to listen in on transactions or incidents and trigger audio warnings. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera’s digital input or output to trigger alarms or actions. Plus, since the input is supervised, an alarm can also be sent if the connection is cut.
We’ve got you covered- inside and out
Enclosed in a dust and vandal-resistant IK10-rated casing, AXIS P3248-LV camera is protected against redirection, defocusing, and impacts. It’s packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default.
Viktiga egenskaper
Axis P3248-LV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 350°, Tilt angle range: -75 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Outdoor |
|---|
| Connectivity technology | Wired |
|---|
| PTZ control | Yes |
|---|
Design
| Form factor | Dome |
|---|
| Mounting type | Ceiling/wall |
|---|
| Product colour | Black,White |
|---|
| International Protection (IP) code | IP56 |
|---|
| IK code | IK10 |
|---|
Camera
| Camera pan control | Yes |
|---|
| Camera tilt control | Yes |
|---|
| Minimum illumination | 0.14 lx |
|---|
| Angle of rotation | 350 ° |
|---|
| Tilt angle range | -75 - 75 ° |
|---|
| Pan range | -180 - 180 ° |
|---|
| Camera shutter speed | 1/8500 - 1/5 s |
|---|
| Adjustment shutter speed | Auto |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Number of sensors | 1 |
|---|
| Optical sensor size | 1/1.8 " |
|---|
Lens system
| Number of lenses | 1 |
|---|
| Focal length range | 4.3 - 8.6 mm |
|---|
Video
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Total megapixels | 8.3 MP |
|---|
| Video formats supported | H.264,H.265,M-JPEG |
|---|
| Video compression formats | H.264,H.265 |
|---|
| Supported graphics resolutions | 3840 x 2160 |
|---|
| Supported video modes | 2160p |
|---|
| Frame rate | 30 fps |
|---|
Audio
| Audio system full duplex | Yes |
|---|
| Audio formats supported | ADPCM,LPCM,PCM |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | No |
|---|
| Networking standards | IEEE 802.1x |
|---|
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1. |
|---|
Storage
| Built-in HDD | No |
|---|
| Flash memory | 512 MB |
|---|
| Internal memory | 2048 MB |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (max) | 11.4 W |
|---|
| Power consumption (Power over Ethernet (PoE)) | 8.2 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 85 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Height | 103 mm |
|---|
| Diameter | 149 mm |
|---|
| Weight | 720 g |
|---|
Packaging content
| Number of cameras | 1 |
|---|
| Manual | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85258900 |
|---|
