Produktbeskrivning

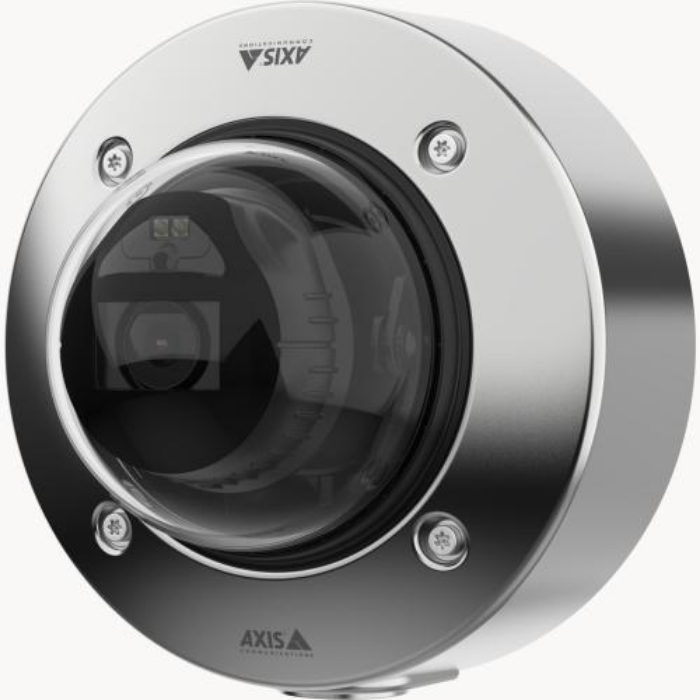

Certified for use in food processing facilities, this robust camera is enclosed in an marine-grade stainless steel (SS 316L) casing. It offers excellent image quality in 4K and supports advanced analytics based on deep learning on the edge.

Maintenance-friendly and robust
Enclosed in an electropolished, marine-grade stainless steel (SS 316L) casing, DNV-certified, this robust camera can withstand the corrosive effects of seawater as well as cleaning chemicals. Easy to clean and maintain, it’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Furthermore, this IK11-, NEMA 4X-, and IP66/67/68-rated camera is both weather-proof and impact-resistant. And it can withstand extreme temperatures between -40 °C to 50 °C (-40 °F to 122 °F).

Excellent image quality
AXIS P3268-SLVE delivers excellent image quality and forensic details in 8 MP at up to 30 fps. Plus, it offers a wide field of view of up to 100°. Thanks to Lightfinder 2.0 and Forensic WDR, you’ll enjoy true colors and great detail in challenging light or near darkness. And OptimizedIR ensures sharp, clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.

Deep learning analytics on the edge
Built on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Additionally, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, it includes Axis Edge Vault, a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.



Viktiga egenskaper

Axis P3268-SLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Form factor: Dome. Angle of rotation: 380°, Tilt angle range: -10 - 80°, Pan range: -190 - 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm, Closest focusing distance: 0.5 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Processor model	ARTPEC-8
Built-in processor	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,Silver
Housing material	Polycarbonate (PC),Stainless steel
International Protection (IP) code	IP66, IP67, IP68

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0 lx
Angle of rotation	380 °
Tilt angle range	-10 - 80 °
Pan range	-190 - 190 °
Camera shutter type	Electronic
Camera shutter speed	1/8500 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Focal length range	4.3 - 8.6 mm
Closest focusing distance	0.5 m

Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video formats supported	MPEG4
Video compression formats	H.264,H.265,M-JPEG
Frame rate	30 fps
Video streaming	Yes
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness
Text caption overlay	Yes

Audio system	2-way
Audio formats supported	AAC-LC,G.711,G.726,LPCM

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes

IP address filtering	Yes
Security algorithms	EAP-TLS,HTTPS

Web-based management	Yes
Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	5.5 W
Power consumption (max)	11.2 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	112 mm
Diameter	166 mm
Weight	1760 g

Number of cameras	1
Screws included	Yes
Manual	Yes

Compliance certificates	BIS,CE,KC,NSF,RCM,Trade Agreements Act (TAA),UKCA,UL,VCCI,WEEE,cUL
