Produktbeskrivning

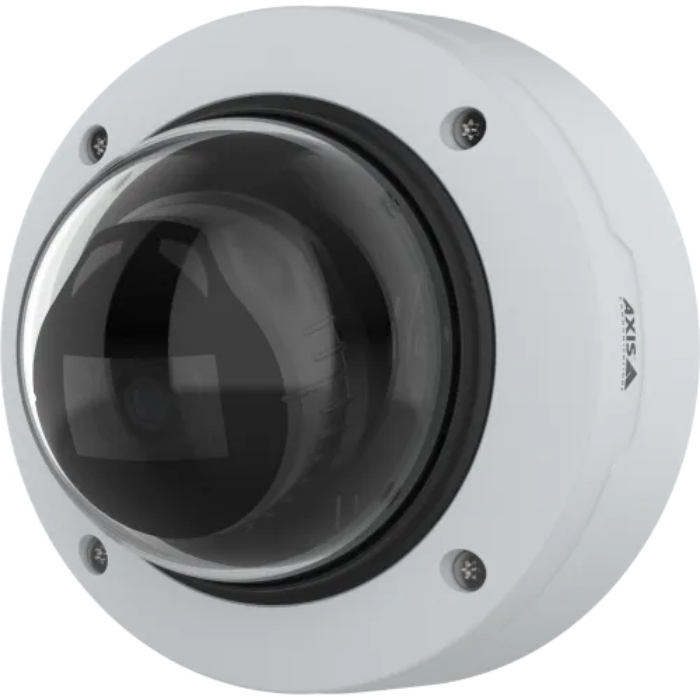

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in challenging light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality
AXIS P3275-V offers excellent image quality and forensic details in 2 MP. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.



Viktiga egenskaper

Axis P3275-V. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Lens viewing angle, horizontal: 100 - 32°, Lens viewing angle, vertical: 52 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.4 - 9.8 mm, Detect distance (wide): 48 m, Detect distance (tele): 135 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Protection features	Impact resistant,Vandal proof
International Protection (IP) code	IP54
IK code	IK10
Fog proof	Yes

Minimum illumination	0.08 lx
Lens viewing angle, horizontal	100 - 32 °
Lens viewing angle, vertical	52 - 18 °
Camera pixel size	2.9 µm
Camera shutter speed	1/37000 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.8 "

Number of lenses	1
Zoom capability	Yes
Focal length range	3.4 - 9.8 mm
Auto focus	Yes
Recognize distance (tele)	27 m
Identify distance (tele)	14 m
Observe distance (wide)	19 m
Recognize distance (wide)	9.6 m
Detect distance (tele)	135 m
Observe distance (tele)	54 m
Identify distance (wide)	4.8 m
Detect distance (wide)	48 m

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.265,H.264,AV1
Supported graphics resolutions	1920 x 1080 (HD 1080),1280 x 800,1440 x 1080
Frame rate	60 fps
Video streaming	Yes
Noise reduction technology	2D noise reduction,3D noise reduction

Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet,100 Gigabit Ethernet,Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SDHC,SDXC
Flash memory	8000 MB
RAM capacity	2000 MB

Ethernet LAN (RJ-45) ports	1

Security algorithms	FIPS 140-3

Power source type	PoE
Power consumption (typical)	3.4 W
Power consumption (max)	10 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	800 g

Number of cameras	1

Doesn't contain	PVC,CFR,Brominated Flame Retardant (BFR)
