Produktbeskrivning

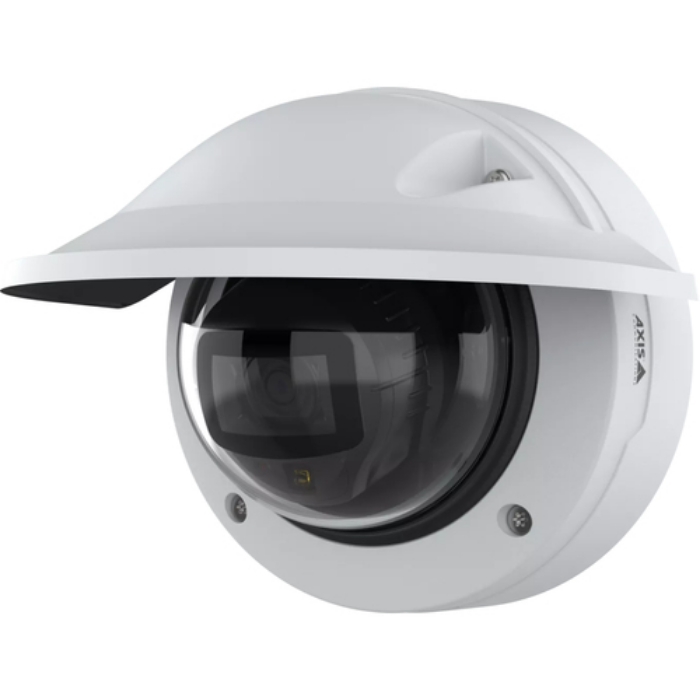

AXIS P3278-LVE Dome Camera

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality

AXIS P3278-LVE offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.

Powerful analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.

Robust with strong security

This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.



Viktiga egenskaper

Axis P3278-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
People counting function	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic,Polycarbonate (PC)
Protection features	Impact resistant,Vandal proof
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes
Fog proof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.03 lx
Angle of rotation	190 °
Lens viewing angle, horizontal	103 °
Lens viewing angle, vertical	56 °
Tilt angle range	-50 - 80 °
Pan range	-190 - 190 °
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "
Progressive scan	Yes

Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Lens diameter	10 mm
Focal length range	4.4 - 14.6 mm
Auto focus	Yes
Minimum aperture number	1.65
Maximum aperture number	3.65
Detect distance (tele)	292 m
Observe distance (tele)	116 m
Recognize distance (tele)	58 m
Observe distance (wide)	35 m
Recognize distance (wide)	18 m
Closest focusing distance	1 m
Identify distance (tele)	29 m
Identify distance (wide)	9 m
Detect distance (wide)	88 m

Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video formats supported	AV1,AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	2560 x 1600 (WQXGA),2592 x 1944,3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Flip & mirror	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Text caption overlay	Yes

Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8 MB
Internal memory	2000 MB

Microphone in	Yes
Terminal block port	Yes

Privacy protection	Yes
Human and vehicle targets classification	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,MSCHAPv2,PEAP
Intelligent Video Surveillance (IVS) system features	Line crossing detection,Moving object

Power source type	PoE
Power consumption (typical)	5.5 W
Power consumption (max)	12.9 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	183 mm
Depth	156 mm
Height	107 mm
Weight	850 g

Number of cameras	1
Manual	Yes

Compliance certificates	CE,EAC,Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),ICES,KC,RCM,REACH,RoHS,Trade Agreements Act (TAA),UKCA,UL,VCCI,cUL
Doesn't contain	BFR,PVC
