Produktbeskrivning

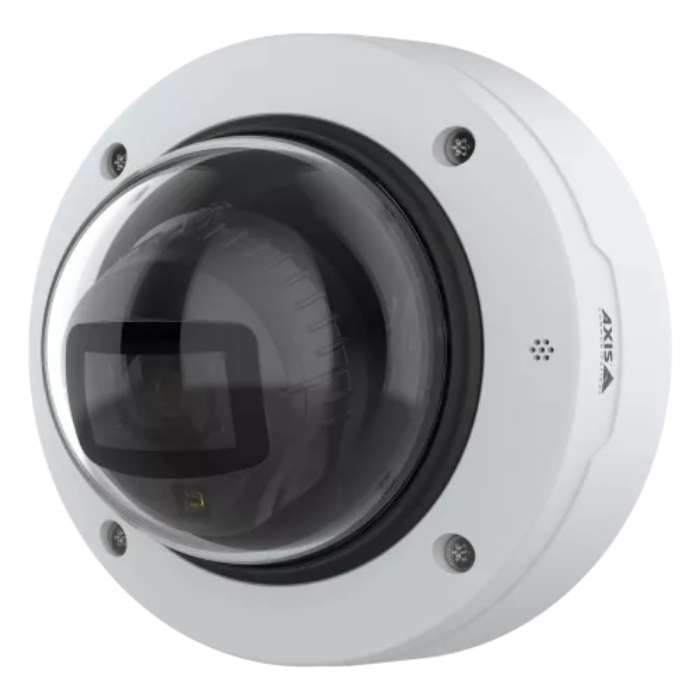

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality
AXIS P3285-LV offers excellent image quality and forensic details in 2 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.



Viktiga egenskaper

Axis P3285-LV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Lens viewing angle, horizontal: 100 - 32°, Lens viewing angle, vertical: 52 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.4 - 9.8 mm, Detect distance (wide): 48 m, Detect distance (tele): 135 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Protection features	Impact resistant,Vandal proof
International Protection (IP) code	IP54
IK code	IK10

Minimum illumination	0.08 lx
Lens viewing angle, horizontal	100 - 32 °
Lens viewing angle, vertical	52 - 18 °
Tilt angle range	-45 - 80 °
Pan range	-190 - 190 °
Camera pixel size	2.9 µm
Camera shutter speed	1/37000 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.8 "

Number of lenses	1
Zoom capability	Yes
Focal length range	3.4 - 9.8 mm
Auto focus	Yes
Identify distance (wide)	4.8 m
Detect distance (tele)	135 m
Observe distance (tele)	54 m
Identify distance (tele)	14 m
Detect distance (wide)	48 m
Observe distance (wide)	19 m
Recognize distance (wide)	9.6 m
Recognize distance (tele)	27 m

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.265,H.264,AV1
Supported graphics resolutions	1920 x 1080 (HD 1080),1280 x 800,1440 x 1080
Frame rate	60 fps
Video streaming	Yes

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet,100 Gigabit Ethernet,Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Card reader integrated	Yes

Ethernet LAN (RJ-45) ports	1

Security algorithms	FIPS 140-3

Power source type	PoE
Power consumption (typical)	3.4 W
Power consumption (max)	10 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	810 g

Number of cameras	1

Doesn't contain	PVC,CFR,Brominated Flame Retardant (BFR)
