Produktbeskrivning

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.



Viktiga egenskaper

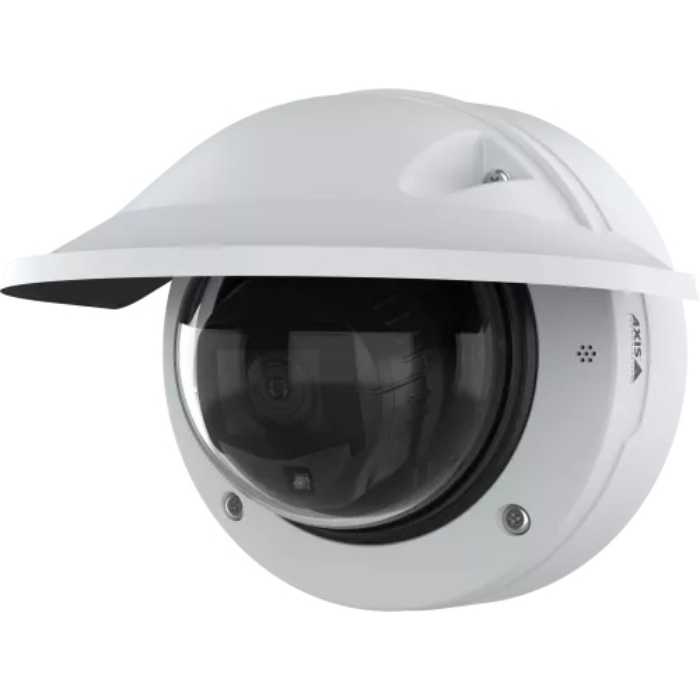

Axis P3287-LVE Dome. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 2.9 cm, Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes
Housing material	Plastic,Polycarbonate (PC)
Protection features	Impact resistant,Vandal proof
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.02 lx
Angle of rotation	190 °
Lens viewing angle, horizontal	34 °
Lens viewing angle, vertical	26 °
Tilt angle range	-45 - 80 °
Pan range	-190 - 190 °
Camera pixel size	2 µm
Camera shutter speed	1/30500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Number of lenses	1
Zoom capability	Yes
Lens diameter	29 mm
Focal length range	3 - 8.5 mm
Auto focus	Yes
Minimum aperture number	1.7
Maximum aperture number	1.76
Identify distance (wide)	6 m
Observe distance (wide)	24 m
Identify distance (tele)	17 m
Recognize distance (tele)	34 m
Observe distance (tele)	67 m
Recognize distance (wide)	12 m
Detect distance (tele)	170 m
Detect distance (wide)	60 m

Night vision	Yes
Night vision distance	45 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video formats supported	AV1,AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	1280 x 800 (WXGA),1440 x 1080,1920 x 1080 (HD 1080),2592 x 1944
Frame rate	30 fps
Video streaming	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Flip & mirror	Yes

Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	2000 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes

Active tampering alarm	Yes
Human and vehicle targets classification	Yes
Privacy protection	Yes
Video motion detection	Yes
Pixel counter	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,HTTPS,MSCHAPv2,PEAP
Alert notification type	E-mail

Behavior analysis	Line crossing detection

Power source type	PoE
Power consumption (typical)	4.7 W
Power consumption (max)	12.6 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	820 g

Number of cameras	1
Sun shield included	Yes
Manual	Yes

Compliance certificates	REACH,RoHS,Trade Agreements Act (TAA)
Doesn't contain	CFR,PVC,PVC/BFR
