Produktbeskrivning

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality

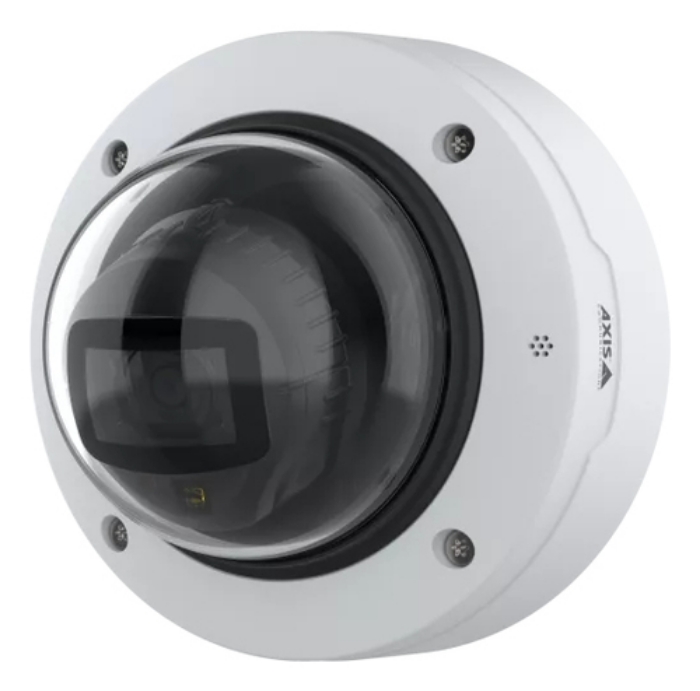

AXIS P3288-LV offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.



Viktiga egenskaper

Axis P3288-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 103 - 29°, Lens viewing angle, vertical: 56 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.4 - 14.6 mm, Detect distance (wide): 88 m, Detect distance (tele): 292 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Dynamic range	120 dB

Form factor	Dome
Mounting type	Ceiling
Product colour	White
International Protection (IP) code	IP54
IK code	IK10
Fog proof	Yes

Minimum illumination	0 lx
Angle of rotation	95 °
Lens viewing angle, horizontal	103 - 29 °
Lens viewing angle, vertical	56 - 17 °
Tilt angle range	-40 - 80 °
Pan range	-190 - 190 °
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Optical sensor size	1/1.8 "

Focal length range	4.4 - 14.6 mm
Auto focus	Yes
Closest focusing distance	1 m
Recognize distance (wide)	18 m
Detect distance (tele)	292 m
Observe distance (tele)	116 m
Observe distance (wide)	35 m
Recognize distance (tele)	58 m
Identify distance (wide)	9 m
Identify distance (tele)	29 m
Detect distance (wide)	88 m

Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	H.264,H.265,M-JPEG
Supported graphics resolutions	3840 x 2160,2560 x 1600 (WQXGA),2592 x 1944
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	2048 MB

Cloud-managed	Yes

Power source type	PoE,DC
Power consumption (max)	12.9 W
DC output voltage	12

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Height	107 mm
Diameter	149 mm
Weight	820 g

Number of cameras	1
