Produktbeskrivning

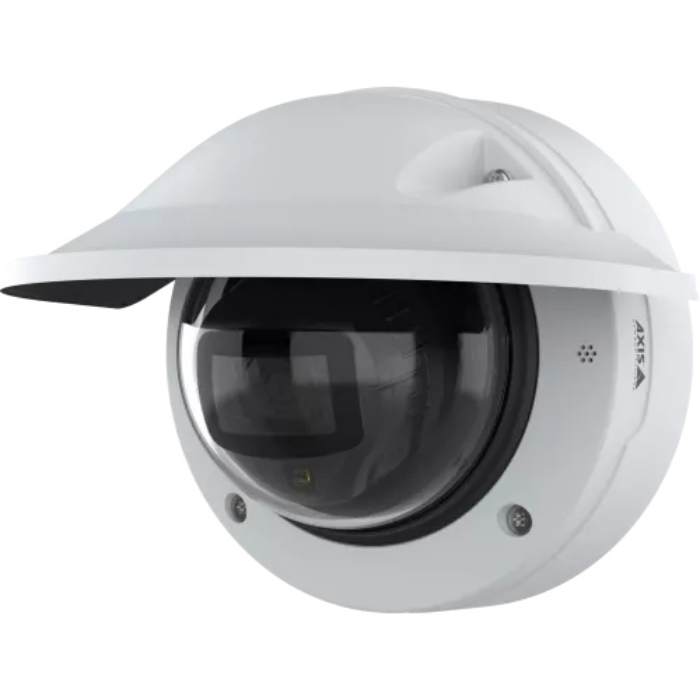

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality
AXIS P3288-LVE offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.



Viktiga egenskaper

Axis P3288-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.11 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 103 - 29°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.4 - 14.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Wall/Pole
Product colour	White
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.11 lx
Angle of rotation	95 °
Lens viewing angle, horizontal	103 - 29 °
Lens viewing angle, vertical	56 - 17 °
Tilt angle range	-45 - 80 °
Pan range	-190 - 190 °
Camera pixel size	2 µm
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Optical sensor size	1/1.8 "

Zoom capability	Yes
Focal length range	4.4 - 14.6 mm
Auto focus	Yes

Night vision	Yes

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video formats supported	H.264,H.265,AV1
Supported graphics resolutions	3840 x 2160,2560 x 1600 (WQXGA),2592 x 1944
Frame rate	30 fps
Video streaming	Yes

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet interface type	10 Gigabit Ethernet,100 Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),SDHC,SDXC
Flash memory	8000 MB
RAM capacity	2000 MB

Ethernet LAN (RJ-45) ports	1

Security algorithms	FIPS 140-3

Power source type	PoE
Power consumption (typical)	5.5 W
Power consumption (max)	12.9 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	860 g

Number of cameras	1

Doesn't contain	PVC,Brominated Flame Retardant (BFR),CFR
