Produktbeskrivning

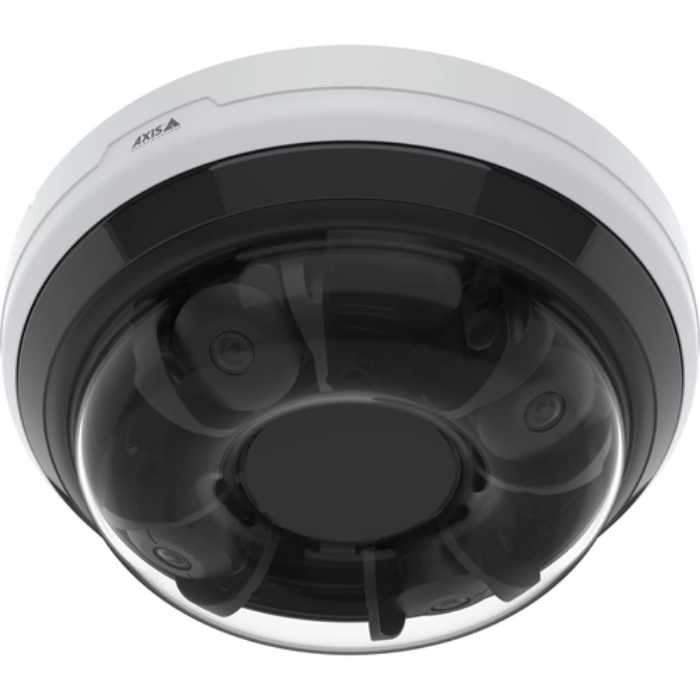

AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7

Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security

This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.



Viktiga egenskaper

Axis 02897-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Horizontal field of view (thermal module): 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.78 mm (1 / 2.78"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Maximum operating distance	20 m
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Remote viewing	Yes
Built-in light	Yes
Number of languages	19
Languages support	ARA,CHI (SIMPL),CHI (TR),CZE,DUT,ENG,FIN,FRE,GRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Activity
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Camera tilt control	Yes
Minimum illumination	0.1 lx
Horizontal field of view (thermal module)	360 °
Lens viewing angle, horizontal	360 °
Lens viewing angle, vertical	71.5 - 30.0 °
Camera pixel size	2 µm
Camera shutter speed	1/19500 - 1 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.78 "
Progressive scan	Yes

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	3
Zoom capability	Yes
Focal length range	3.18 - 7.42 mm
Focus	Motorized
Fixed focus	Yes

Night vision	Yes
Night vision distance	20 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video formats supported	H.264,H.265
Video compression formats	M-JPEG,MPEG,MPEG4
Supported graphics resolutions	640 x 360,640 x 480 (VGA),2560 x 1440,2592 x 1944
Video recording	Yes
Frame rate	20 fps
Video intelligence analytic	Yes
Video streaming	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Privacy masking	Yes
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness

Built-in speaker(s)	Yes
Audio system	2-way
Audio system full duplex	Yes
Audio input channels	2.0 channels
Audio output channels	2.0 channels
Audio formats supported	RTSP
Frequency range	50 - 60 Hz
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Number of simultaneous live view channels	4 channels
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Privacy protection	Yes
IP address filtering	Yes
Alert notification type	E-mail
Video motion detection	Yes
Security algorithms	256-bit AES-XTS,FIPS 140-2,HTTPS,SNMP
Pixel counter	Yes
Active tampering alarm	Yes
HTTPS encryption	Yes
Digest authentication	Yes
Intelligent Video Surveillance (IVS) system features	Human detection,Vehicle detection
Motion sensor	Yes
Network access storage (NAS)	Yes
Human and vehicle targets classification	Yes

Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	10.8 W
Power consumption (max)	23.7 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	141 mm
Depth	220 mm
Height	75 mm
Weight	3000 g

License plate recognition	Yes

Number of cameras	1
Mounting kit	Yes
Mounting brackets included	Yes
Memory card included	Yes
Manual	Yes

Compliance certificates	BSMI,CE,Federal Communications Commission (FCC),ICES,KC,RCM,REACH,RoHS,Trade Agreements Act (TAA),UL,VCCI,cUL
Warranty period	5 year(s)
Doesn't contain	BFR,CFR,PVC
