Produktbeskrivning

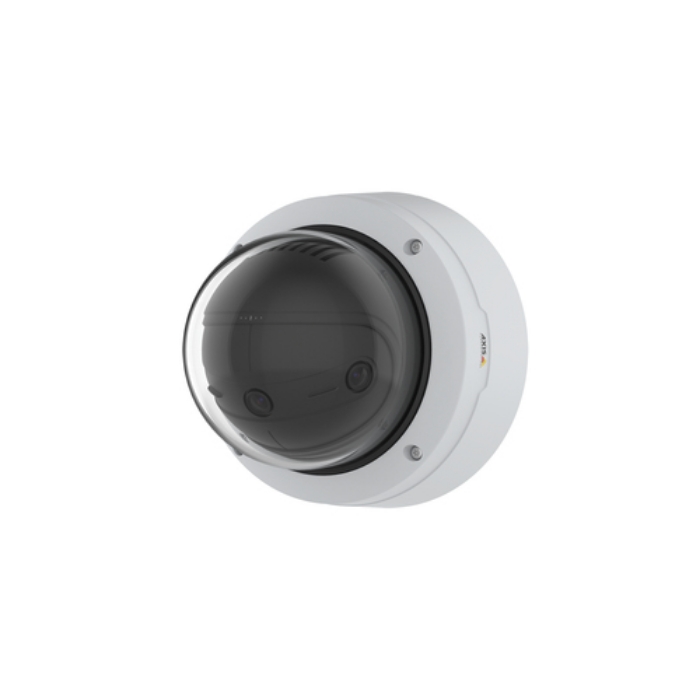

AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.



Viktiga egenskaper

Axis 02060-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 3.2 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	11
Certification	EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No

Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.05 lx
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	90 °
Tilt angle range	0 - 50 °
Pan range	-180 - 180 °
Camera shutter speed	1/91000 - 1/25, 1/50000 - 1/25 s

Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Yes

Maximum aperture number	2
Fixed focal length	3.2 mm

Maximum resolution	5120 x 2560 pixels
Total megapixels	13 MP
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio system	2-way
Voice codecs	G.711,G.726,OPUS

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CD
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes

Password protection	Yes
Security algorithms	EAP-TLS,FIPS 140-2
IP address filtering	Yes
HTTPS encryption	Yes

Web-based management	Yes

Power source type	PoE
Power consumption (typical)	11 W
Power consumption (max)	18 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	206 mm
Height	221 mm
Weight	2200 g

Number of cameras	1

Harmonized System (HS) code	85258900
