Produktbeskrivning

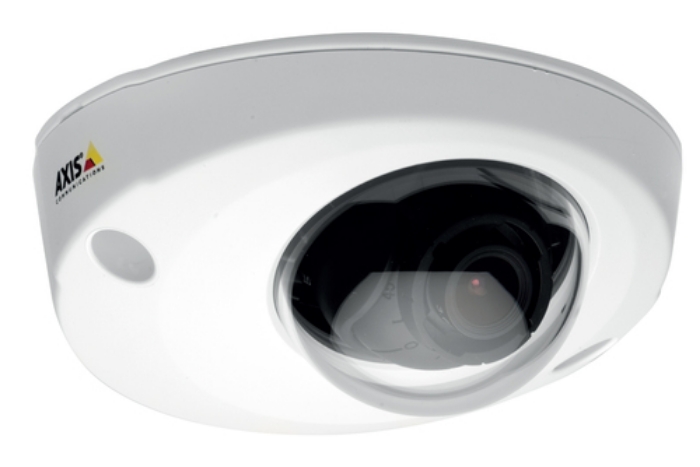

AXIS P3905-R Mk II Network Camera is specially designed for video surveillance in vehicles and rolling stock. The compact, discreet, and rugged camera is IP66/IP67-rated, and can withstand tough conditions such as vibration, shock and temperature fluctuations. Optional accessories for outdoor installation and wider field of view available. The camera provides HDTV 1080p with WDR and Lightfinder to ensure high image quality in mixed and low-light conditions. Traffic Light mode enables the camera to distinguish traffic light colors in dark scenes. AXIS P3905-R Mk II supports Zipstream, which significantly reduces bandwidth and storage requirements.



Viktiga egenskaper

Axis 01072-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 87°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	11
Certification	EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 5 A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 05 (E), EN 50498, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, NFPA 130d; IEC/EN 60529 IP66

Form factor	Dome
Mounting type	Ceiling
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP67
IK code	IK08

Minimum illumination	0.06 lx
Angle of rotation	175 °
Lens viewing angle, horizontal	87 °
Lens viewing angle, vertical	49 °
Tilt angle range	15 - 90 °
Pan range	-30 - 30 °
Camera shutter speed	1/32500 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.9 "
Progressive scan	Yes

Maximum aperture number	2
Fixed focal length	3.6 mm

Maximum resolution	1920 x 1080 pixels
Video compression formats	AVC,H.264,M-JPEG,MPEG4
Supported graphics resolutions	160 x 90,1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Video streaming	Yes
Full HD	Yes
Image quality adjustment	Brightness,Contrast,Sharpness
Privacy masking	Yes
Bit rate control	Variable Bit Rate (VBR)

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4/v6, HTTP, HTTPS , SSL/TLS, QoS l3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Cabling technology	10/100Base-T(X)

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	256 MB
Internal memory	512 MB

Interface	RJ-45

Password protection	Yes
Security algorithms	HTTPS
Video motion detection	Yes
IP address filtering	Yes

Web-based management	Yes

Power source type	PoE
Power consumption (typical)	2.9 W
Power consumption (max)	3.6 W
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Height	49 mm
Diameter	109 mm
Weight	241 g

Number of cameras	1
User guide	Yes

Harmonized System (HS) code	85258900
