Produktbeskrivning

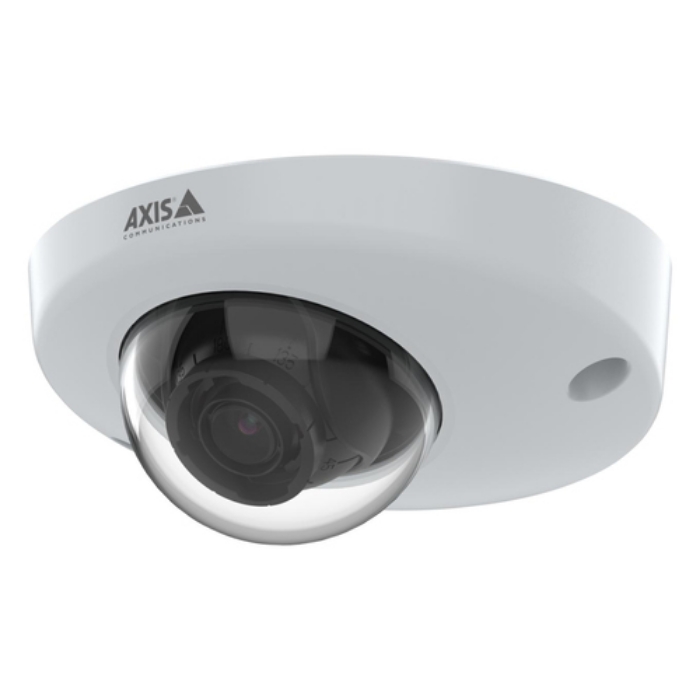

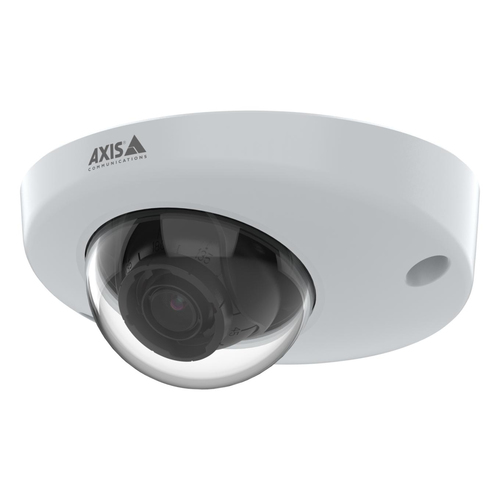

This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.



Viktiga egenskaper

Axis 02670-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Built-in processor	Yes
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Number of languages	19
Certification	CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE

Form factor	Dome
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.04 lx
Angle of rotation	175 °
Lens viewing angle, horizontal	88 °
Lens viewing angle, vertical	47 °
Tilt angle range	15 - 90 °
Pan range	-30 - 30 °
Camera pixel size	2.8 µm

Sensor type	CMOS
Optical sensor size	1/2.9 "

Zoom capability	Yes
Lens diameter	3.6 mm
Maximum aperture number	2

Night vision	No

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Privacy masking	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
Video motion detection	Yes
Digest authentication	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Network access storage (NAS)	Yes
IP address filtering	Yes

Power source type	PoE
Power consumption (max)	3.8 W
Power consumption (Power over Ethernet (PoE))	2.2 W

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Height	50 mm
Diameter	110 mm
Weight	241 g

Number of cameras	1
Manual	Yes
