Produktbeskrivning

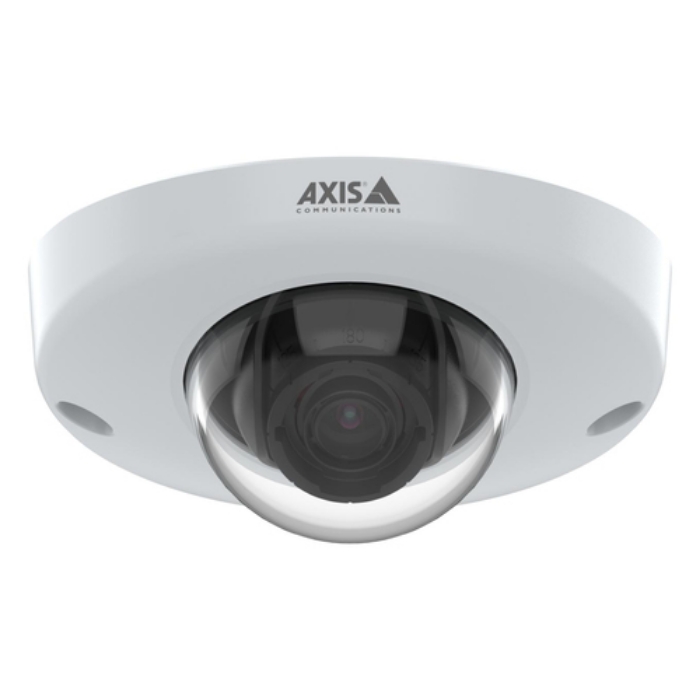

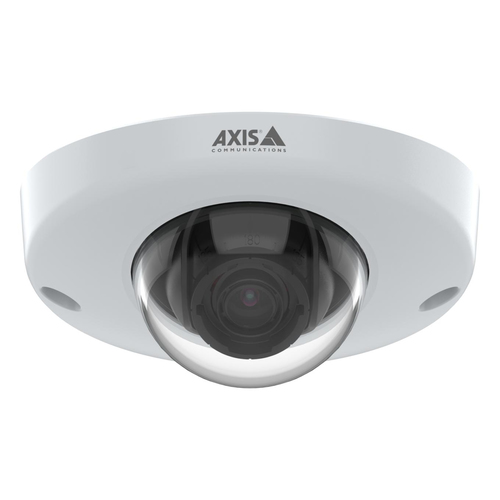

AXIS P3905-R Mk III Dome Camera

Specifically designed for indoor onboard monitoring on railway vehicles such as trains and trams , this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.

Optimized for onboard surveillance

This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS P3905-R Mk III can distinguish the color of traffic lights in dark scenes. Furthermore, there are two product variations available with different lens options, and additional lenses available as accessories - everything you need to adjust field of view for customized monitoring purposes.

For tough onboard conditions

AXIS P3905-R Mk III complies with transportation industry standards including EN50155 and EN45545. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installations. Additionally, when used together with AXIS TP3826-E housing it can be mounted on the outside of a vehicle to withstand tough weather.

Secure and cost-effective

This onboard camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Axis Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions.



Viktiga egenskaper

Axis P3905-R Mk III. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.02 lx
Angle of rotation	350 °
Lens viewing angle, horizontal	107 °
Lens viewing angle, vertical	56 °
Tilt angle range	15 - 90 °
Pan range	-30 - 30 °
Camera pixel size	2.8 µm
Camera shutter speed	1/19000 - 1/5 s
Number of Privacy masking areas	32

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "

Number of lenses	1
Detect distance	21.1 m
Observe distance	7.4 m
Recognize distance	4.2 m
Identify distance	2.1 m
Maximum aperture number	1.2
Fixed focal length	2.8 mm
Closest focusing distance	0.3 m

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264,H.265,M-JPEG
Supported graphics resolutions	320 x 240,640 x 360,640 x 400,1280 x 800,1280 x 960,1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Privacy masking	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP,
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Password protection	Yes
Pixel counter	Yes
Digest authentication	Yes
Video motion detection	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,HTTPS,MSCHAPv2,PEAP
Alert notification type	E-mail

Power source type	PoE
Power consumption (typical)	2.2 W
Power consumption (max)	3.8 W

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Width	110 mm
Depth	110 mm
Height	50 mm
Weight	241 g

Number of cameras	1
Manual	Yes

Compliance certificates	REACH,RoHS
Doesn't contain	CFR,PVC/BFR
