Produktbeskrivning

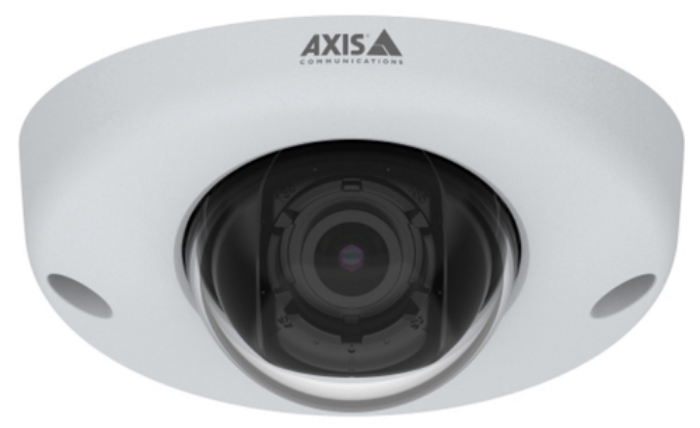

Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.



Viktiga egenskaper

Axis 01920-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm



Teknisk specifikation

Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	1
Certification	55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
IK code	IK10
Fog proof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Angle of rotation	350 °
Lens viewing angle, horizontal	110 °
Lens viewing angle, vertical	62 °
Tilt angle range	15 - 90 °
Pan range	-30 - 30 °
Camera shutter speed	1/33500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "
Progressive scan	Yes

Number of lenses	1
Maximum aperture number	1.6
Fixed focal length	2.8 mm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	160 x 120,160 x 90,1280 x 960,1920 x 1080 (HD 1080)
Frame rate	45 fps
Video streaming	Yes
Image stabilizer	Yes
Text caption overlay	Yes
Privacy masking	Yes
Image quality adjustment	Brightness,Contrast,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Number of users	8 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Active tampering alarm	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Video motion detection	Yes

Power source type	PoE
Power consumption (typical)	4.2 W
Power consumption (max)	6.4 W

Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 95 %

Width	110 mm
Depth	110 mm
Height	49.5 mm
Weight	410 g

Doesn't contain	PVC

Harmonized System (HS) code	85258900
