Produktbeskrivning

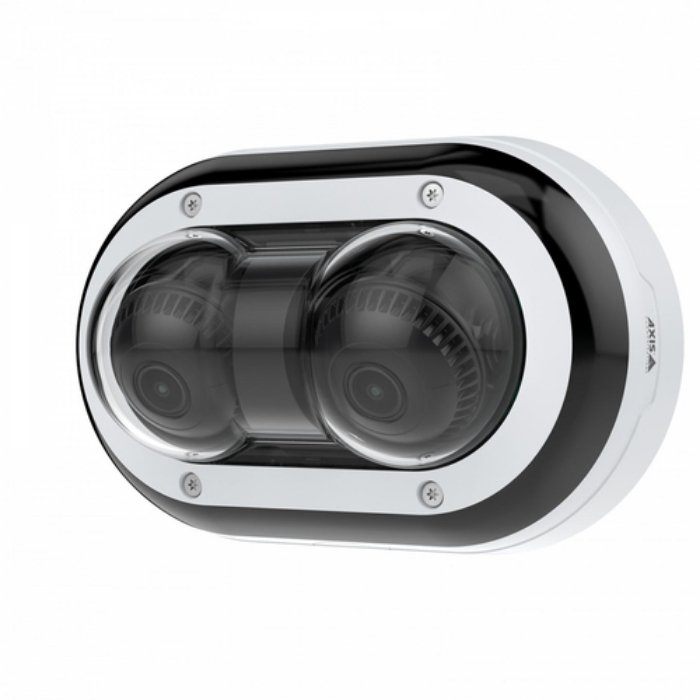

This dual-sensor, multidirectional camera offers 2*2 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
Viktiga egenskaper
Axis 02415-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 107 - 39°, Lens viewing angle, vertical: 55 - 22°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.8 mm (1 / 2.8"), Camera shutter speed (panoramic camera): 1/20000 - 1.5 s
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor & outdoor |
|---|
| Connectivity technology | Wired |
|---|
| Wide Dynamic Range (WDR) | Yes |
|---|
| Day/night mode | Yes |
|---|
Design
| Form factor | Bulb |
|---|
| Mounting type | Ceiling/wall |
|---|
| Product colour | Black,White |
|---|
| International Protection (IP) code | IP66, IP67 |
|---|
| IK code | IK10 |
|---|
Camera
| Angle of rotation | 170 ° |
|---|
| Lens viewing angle, horizontal | 107 - 39 ° |
|---|
| Lens viewing angle, vertical | 55 - 22 ° |
|---|
| Lens viewing angle, diagonal | 131 - 45 ° |
|---|
| Tilt angle range | -75 - 75 ° |
|---|
| Pan range | -100 - 110 ° |
|---|
| Camera shutter speed | 1/20000 - 1.5 s |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Optical sensor size | 1/2.8 " |
|---|
Panoramic camera
| Sensor type (panoramic camera) | CMOS |
|---|
| Optical sensor size (panoramic camera) | 1/2.8 " |
|---|
| Camera shutter speed (panoramic camera) | 1/20000 - 1.5 s |
|---|
| Minimum illumination (panoramic camera) | 0.1 lx |
|---|
Lens system
| Number of lenses | 1 |
|---|
| Zoom capability | Yes |
|---|
| Focal length range | 3.3 – 8.1 mm |
|---|
| Auto focus | Yes |
|---|
Night vision
| Night vision | Yes |
|---|
| LED type | IR |
|---|
Video
| Maximum resolution | 1920 x 1080 pixels |
|---|
| Total megapixels | 2 MP |
|---|
| Video compression formats | H.264,H.265,M-JPEG |
|---|
| Supported graphics resolutions | 640 x 360,1920 x 1080 (HD 1080) |
|---|
| Supported video modes | 1080p |
|---|
| Frame rate | 60 fps |
|---|
| Video streaming | Yes |
|---|
| Image quality adjustment | Brightness,Contrast,Sharpness |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Audio system | 2-way |
|---|
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | No |
|---|
| Ethernet interface type | Gigabit Ethernet |
|---|
| Networking standards | IEEE 802.1x,IEEE 802.3at |
|---|
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, |
|---|
| Live view | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Storage
| Built-in HDD | No |
|---|
| Card reader integrated | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Security
| Password protection | Yes |
|---|
| Security algorithms | HTTPS |
|---|
| IP address filtering | Yes |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
|---|
Operational conditions
| Operating temperature (T-T) | -30 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 133 mm |
|---|
| Depth | 208 mm |
|---|
| Height | 88 mm |
|---|
| Weight | 975 g |
|---|
Packaging content
| Number of cameras | 2 |
|---|
Technical details
| Doesn't contain | BFR,PVC |
|---|
