Produktbeskrivning

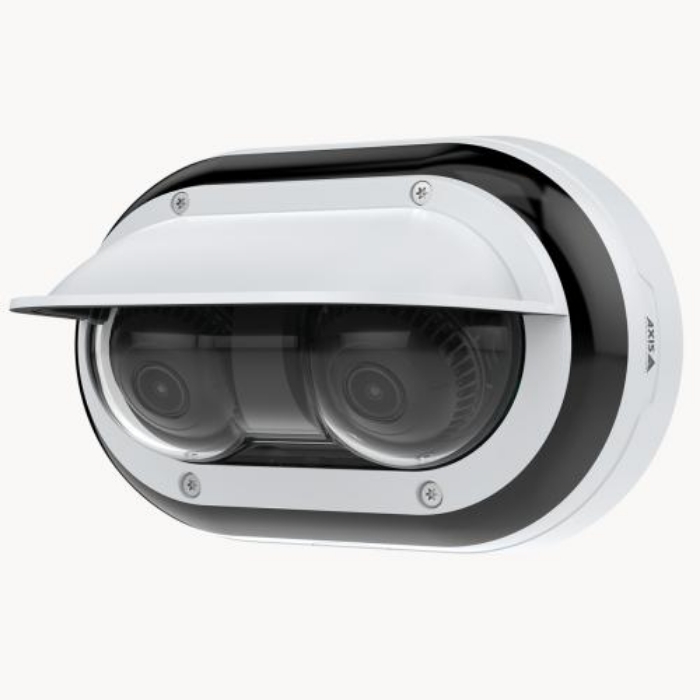

Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 - even in challenging light conditions.

See it all - 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.

Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops.

Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.



Viktiga egenskaper

Axis P4708-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Housing material: Aluminium, Plastic, Polycarbonate (PC). Angle of rotation: 240°, Tilt angle range: -75 - 75°, Pan range: -110 - 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Remote viewing	Yes
Built-in processor	Yes
Processor model	ARTPEC-8

Mounting type	Ceiling/wall
Product colour	Black,Silver
Housing material	Aluminium,Plastic,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0 lx
Angle of rotation	240 °
Tilt angle range	-75 - 75 °
Pan range	-110 - 110 °
Camera shutter type	Electronic
Camera shutter speed	1/16000 s

Sensor type	CMOS
Number of sensors	2
Optical sensor size	1/2.8 "

Sensor type (panoramic camera)	CMOS

Number of lenses	2
Zoom capability	Yes
Focal length range	3.2 - 8.1 mm
Auto focus	Yes
Maximum aperture number	1.9
Minimum aperture number	3.2
Detect distance (tele)	220.1 m
Identify distance (wide)	8.8 m
Observe distance (wide)	34.8 m
Identify distance (tele)	22 m
Closest focusing distance	0.5 m
Detect distance (wide)	87.8 m
Recognize distance (tele)	44 m
Observe distance (tele)	87.3 m
Recognize distance (wide)	17.6 m

Night vision	Yes
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	H.264,H.265,M-JPEG
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness

Audio system	2-way
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1

Privacy protection	Yes
Security algorithms	EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS

Power source type	PoE
Power consumption (typical)	10.2 W
Power consumption (max)	18.8 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	208 mm
Depth	127 mm
Height	133 mm
Weight	975 g

Number of cameras	1

Compliance certificates	CE,EAC,Federal Communications Commission (FCC),KC,RCM,Trade Agreements Act (TAA),UKCA,UL,VCCI,cUL
