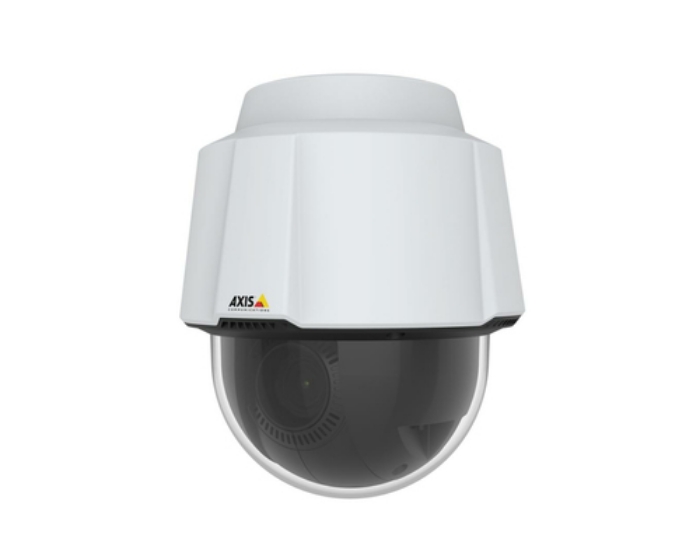

AXIS P5654-E Mk II PTZ Camera

This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.

Great images – anytime

AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.

Keeping you secure

Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

And there’s more…

This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).



Viktiga egenskaper

Axis P5654-E Mk II 50HZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 77 - 3.6°, Lens viewing angle, vertical: 43.1 - 2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 12x, Focal length range: 4 - 84.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	UL/cUL, UKCA, CE, KC, EAC, RCM, TAA

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Lens viewing angle, horizontal	77 - 3.6 °
Lens viewing angle, vertical	43.1 - 2 °
Tilt angle range	0 - 180 °
Tilt speed	350 °/sec
Pan range	0 - 360 °
Pan speed	350 °/sec
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Number of lenses	1
Zoom capability	Yes
Optical zoom	21 x
Digital zoom	12 x
Focal length range	4 - 84.6 mm
Auto focus	Yes
Maximum aperture number	4.5
Minimum aperture number	1.6
Recognize distance (wide)	11 m
Detect distance (tele)	1120 m
Detect distance (wide)	57 m
Observe distance (wide)	23 m
Observe distance (tele)	450 m
Identify distance (wide)	6 m
Recognize distance (tele)	225 m
Identify distance (tele)	110 m

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 180
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Text caption overlay	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
Streaming method	Multicast
Quality of Service (QoS) support	Yes

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB
ROM capacity	1024 MB

Ethernet LAN (RJ-45) ports	1

Video motion detection	Yes
Pixel counter	Yes
Human and vehicle targets classification	Yes
Intelligent Video Surveillance (IVS) system features	Crossing line,Face detection,Human detection,Moving object,Vehicle detection
Alert notification type	E-mail
Security algorithms	EAP-TLS,HTTPS,TLS

Power source type	PoE
Power consumption (typical)	8 W
Power consumption (max)	16 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	188 mm
Depth	188 mm
Height	217 mm
Weight	2500 g

License plate recognition	Yes

Number of cameras	1
Mounting kit	Yes

Doesn't contain	PVC
Compliance certificates	REACH,RoHS
