Produktbeskrivning

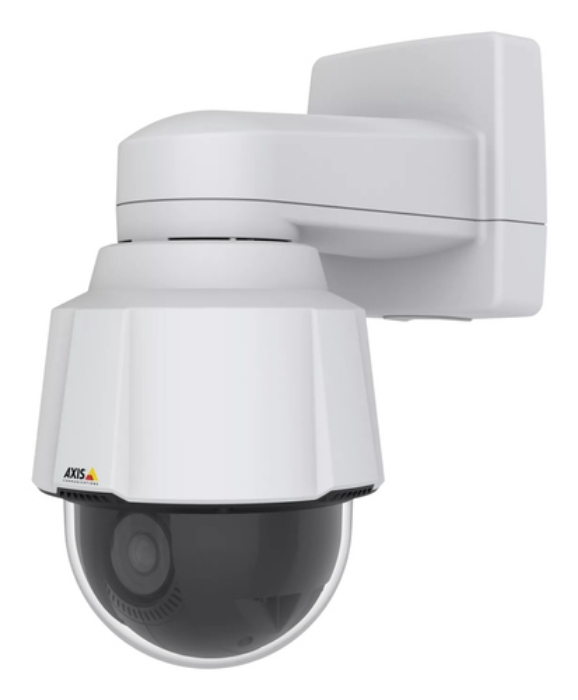

AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It features Forensic WDR for clarity even when there’s both dark and light areas in the scene. And, Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10 ratings it’s resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended capabilities for advanced analytics.



Viktiga egenskaper

Axis 01681-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1,

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
Housing material	Aluminium
Protection features	Shock resistant
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes
Fog proof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.02 lx
Lens viewing angle, horizontal	58.7 °
Lens viewing angle, vertical	35.7 °
Tilt angle range	0 - 180 °
Tilt speed	350 °/sec
Pan range	0 - 360 °
Pan speed	350 °/sec
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	32 x
Digital zoom	12 x
Focal length range	4.3 - 137.6 mm
Auto focus	Yes
Maximum aperture number	4
Minimum aperture number	1.4

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 180,1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Image stabilizer	Yes
Privacy masking	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio system	2-way
Audio formats supported	ADPCM,LC-AAC,LPCM,PCM
Sample rate	48 kHz
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DC-in jack	Yes

Password protection	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Power source type	DC,PoE
Power consumption (typical)	10.5 W
Power consumption (max)	19 W

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 100 %

Width	188 mm
Depth	188 mm
Height	217 mm
Weight	2500 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes

Harmonized System (HS) code	85258900
