Produktbeskrivning

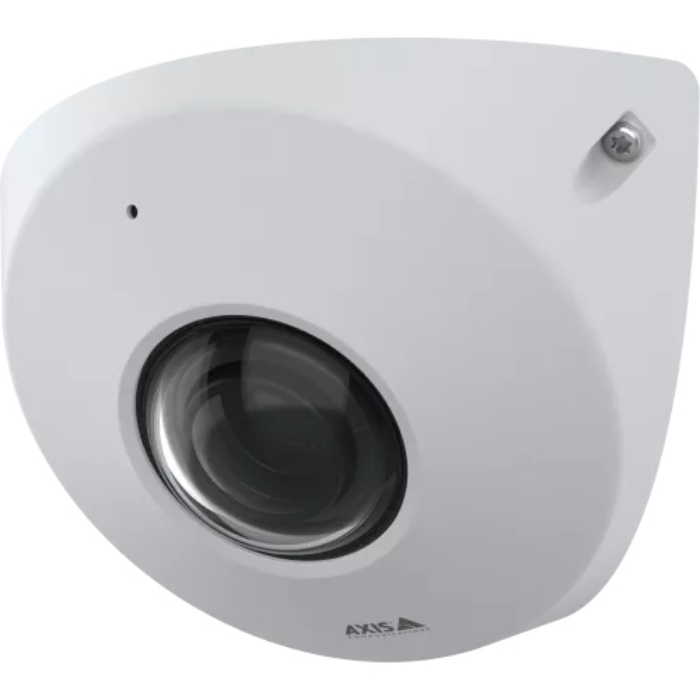

This indoor ligature-resistant (anti-ligature) corner camera delivers 360° panoramic view with no blind spots. Compact and vandal-resistant, it’s easy to clean and install.

Great video performance
AXIS P9117-PV is a 6 MP corner camera that delivers full coverage with no blind spots. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene.

Extended possibilities
Built on an Axis system-on-chip, AXIS P9117-PV features Axis edge vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With this AI-powered camera, you can run advanced analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and classify different objects of interest. With a built-in microphone, it’s out-of-the-box-ready for AXIS Audio Analytics. In addition, elevator door state detector will display if the elevator door is open unexpectedly which could indicate a safety or service issue.

Easy to install and maintain
AXIS P9117-PV is easy to install, thanks to innovative screw gaskets that hold the screws in place during mounting. With a vandal-resistant, IK10-rated casing, it’s ideal for installation in areas prone to vandalism, such as elevators and stairwells. AXIS TP9801 Cover Steel is also available as an accessory. Furthermore, with an abrasion-and chemical-resistant front cover that’s easy to remove, the window can also be cleaned more thoroughly with detergent or graffiti remover.



Viktiga egenskaper

Axis P9117-PV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Bullet. Minimum illumination: 0.04 lx, Horizontal field of view (thermal module): 176°, Lens viewing angle, vertical: 176°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 1.1 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes

Form factor	Bullet
Mounting type	Ceiling
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66
IK code	IK10

Camera tilt control	Yes
Minimum illumination	0.04 lx
Horizontal field of view (thermal module)	176 °
Lens viewing angle, vertical	176 °

Sensor type	CMOS
Optical sensor size	1/1.8 "

Number of lenses	1
Focal length range	1.1 mm
Maximum aperture number	2.2

Night vision	Yes

Maximum resolution	2160 x 2160 pixels
Total megapixels	6 MP
Video formats supported	H.264,H.265,M-JPEG

Audio system	2-way
Built-in microphone	Yes
Audio detection	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.1x

HTTPS encryption	Yes
Video motion detection	Yes
Active tampering alarm	Yes

Power source type	PoE

Operating temperature (T-T)	-15 - 50 °C
