Produktbeskrivning

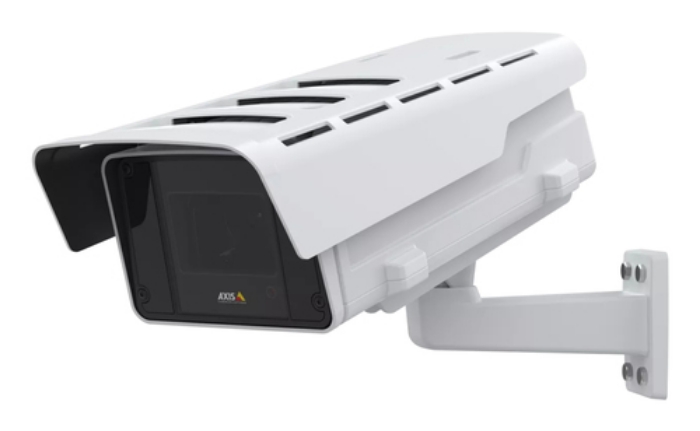

AXIS Q1615-LE Mk III combines exceptional imaging and video performance with outstanding hardware and processing capabilities to provide the perfect platform for analytics based on artificial intelligence (AI) with deep learning. A fixed box camera with Q-line functionality, it features an innovative dual chipset that is the basis for nuanced and remarkably granular object classification. This advanced hardware offers a unique opportunity to take advantage of tailor-made third-party applications based on deep learning. The dual chipset also makes it possible for preinstalled AXIS Object Analytics to distinguish between bikes, cars, buses, trucks, and so on.



Viktiga egenskaper

Axis 02064-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 58°, Camera shutter speed: 1/125000 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 8.5 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ,Preset point
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	11
Certification	EN 50121-4, IEC 62236-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA C22.2 No. 62368-1, IEC

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
IK code	IK10

Lens viewing angle, horizontal	102 °
Lens viewing angle, vertical	58 °
Camera shutter speed	1/125000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Focal length range	2.8 - 8.5 mm
Maximum aperture number	1.2

Night vision	Yes
Night vision distance	60 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported video modes	1080p
Frame rate	120 fps
Video streaming	Yes
Privacy masking	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,PCM
Voice codecs	G.711,G.726,OPUS

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	1024 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Password protection	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes
Mirror	Yes
Security algorithms	EAP-TLS,FIPS 140-2,HTTPS

Power source type	PoE
Power consumption (Power over Ethernet (PoE))	25.5 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	201 mm
Depth	179 mm
Length	494 mm
Weight	6965 g

Number of cameras	1

Harmonized System (HS) code	85258900
