Produktbeskrivning

This fusion device uses radar to accurately track vehicle speed and 46°–9° horizontal FOV delivers images with the pixel density needed for license plate recognition at high speeds.

Identify vehicles and know their speed

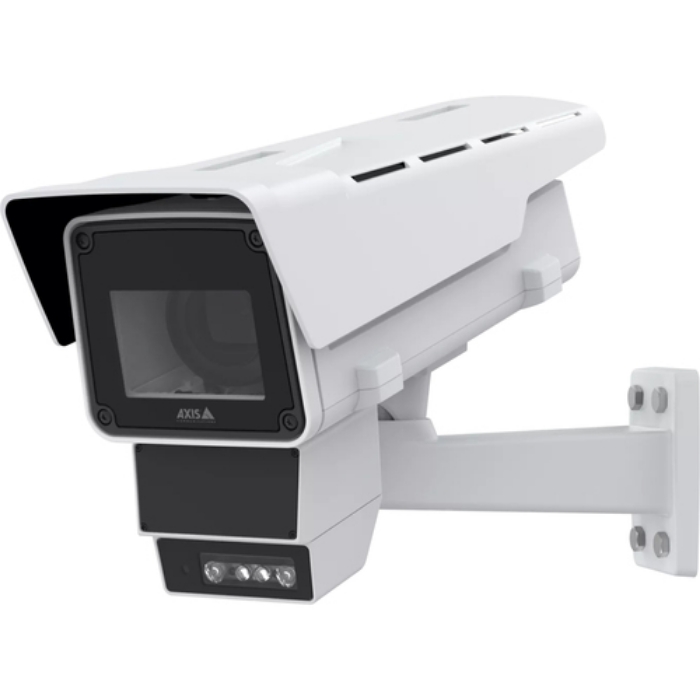

AXIS Q1686-DLE uses radar to reliably monitor vehicle speeds up to 200 km/h (125 mph), 24/7. It can monitor vehicles in multiple lanes and accurately detect both speed and direction. And thanks to multiple line-crossing scenario, the same vehicle must cross two virtual lines to trigger an alarm, making the notifications more accurate. With a low false alarm rate, police can act upon reliable alarms and, for instance, quickly stop vehicles driving the wrong way. Based on an open platform, AXIS Q1686-DLE is compatible with traffic monitoring systems and platforms. It can be used to trigger other devices, for instance, a strobe light to warn and deter wrong-way drivers. What’s more, generated metadata can be gathered and visualized in a dashboard for valuable insights.

Identify vehicles going the wrong way
Not only does AXIS Q1686-DLE accurately detect vehicle speed and direction it can also reliably identify an offending vehicle. Featuring a varifocal tele lens with 46°–9° horizontal FOV, this smart fusion device captures images of vehicles traveling in up to two lanes. It delivers sharp, high-resolution images with the pixel density needed for license plate recognition. A built-in license plate capture assistant ensures easy setup for best video performance. And, thanks to a traffic-optimized IR illumination kit, it can capture license plate images in complete darkness up to 50 m (164 ft). Built on an open platform, you can use AXIS Q1686-DLE with license plate recognition software to connect the speed and direction to a specific license plate. This enables reliable identification of a vehicle, on the edge– in the camera itself.

Easy to install and configure
This innovative, cost-effective device combines a superior Axis Q-line camera with an advanced 60 GHz radar. It offers easy installation with just one device to install, one cable drop, and one IP address. Easy to configure, it’s delivered factory-calibrated with the camera and radar perfectly aligned. And scene profiles automatically adjust the image tuning to your purposes. A built-in license plate capture assistant will automatically adjust the image settings to suit the specific scene. Simply enter the installation height, distance to the vehicle, and the expected speed. Furthermore, smart radar coexistence allows you to install up to eight AXIS Q1686-DLE devices close to each other, ideal for instance at busy traffic intersections or toll plazas.

AXIS Speed Monitor
Display vehicle speeds and collect statistics to make informed decisions for improved road safety. Use AXIS Speed Monitor to seamlessly connect radar to your camera or use stand-alone directly on your Axis radar and stay privacy compliant.

AXIS Radar Integration for Microbus
Easily connect your Axis radar to a digital speed sign from Microbus to display the speed of each passing vehicle. This provides drivers with important feedback and encourages them to stay within the speed limit.

AXIS Radar Autotracking for PTZ
Automatically control the direction, tracking and zoom-level of one or many pan, tilt, zoom cameras for optimized camera views.



Viktiga egenskaper

Axis Q1686-DLE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Box. Lens viewing angle, horizontal: 46°, Lens viewing angle, vertical: 26°, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 9 - 50 mm, Closest focusing distance: 3 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Luminous flux	0.01 lm

Form factor	Box
Mounting type	Ceiling/Wall/Pole
Product colour	Black,White
International Protection (IP) code	IP66
IK code	IK10
Fog proof	Yes

Lens viewing angle, horizontal	46 °
Lens viewing angle, vertical	26 °
Camera shutter speed	1/47500 - 1 s

Sensor type	CMOS
Optical sensor size	1/1.8 "

Focal length range	9 - 50 mm
Auto focus	Yes
Maximum aperture number	1.5
Closest focusing distance	3 m

Night vision	Yes

Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
Video compression formats	H.264,H.265
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image stabilizer	Yes

Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS9 , HTTP/ 2, TLS9 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DC-in jack	Yes

Active tampering alarm	Yes
Privacy protection	Yes
Detection distance	50 m
Security algorithms	HTTPS,802.1x RADIUS,EAP-TLS,PEAP

Power source type	PoE,DC
Power consumption (typical)	9.5 W
Power consumption (max)	25.5 W
Power consumption (Power over Ethernet (PoE))	10 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	5100 g

Number of cameras	1
