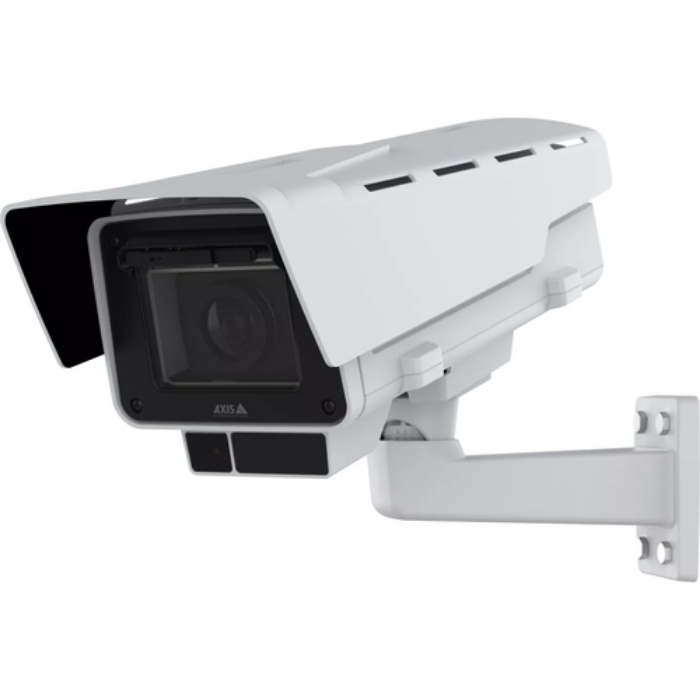

AXIS Q1728-LE Block Camera

Built on ARTPEC-9, with support for AV1 codec, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide or tele lens, it features a built-in wiper to withstand harsh outdoor environments.

Superior image quality

AXIS Q1728-LE offers 8 MP at 60 fps and features a large 1/1.2" sensor for consistent low-light performance. Lightfinder 2.0 and Forensic WDR provide true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 76°-32° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 30°-40° horizontal field of view for great details at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

For harsh, outdoor environments

Ideal for any outdoor location, AXIS Q1728-LE comes with a built-in wiper and front window with carbon nanotube film heater to guarantee great images even in snow, rain, ice, and fog. It can operate in temperatures from -40 °C to 60 °C (-40 °F to 140 °F). This future-proof camera has a standardized enclosure design that can be reused with any Axis block camera. This makes it a more efficient and environmentally friendly option and ensures you get the full value from your investment. What’s more, the front glass is IK08-rated, and the enclosure is IK10-, NEMA 4X-, NEMA TS-2-, IP66-, and IP67-rated to withstand harsh weather conditions and impacts.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful with strong security

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.



Viktiga egenskaper

Axis Q1728-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 13 - 42°, Lens viewing angle, vertical: 7 - 24°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 4.8 cm, Focal length range: 15.2 - 48.7 mm, Detect distance (wide): 211 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
PTZ protocols	Pelco-D
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA

Form factor	Box
Mounting type	Wall
Product colour	Black,White
Housing material	Aluminium,Plastic
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.01 lx
Lens viewing angle, horizontal	13 - 42 °
Lens viewing angle, vertical	7 - 24 °
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.2 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Lens diameter	48 mm
Focal length range	15.2 - 48.7 mm
Auto focus	Yes
Maximum aperture number	1.7
Identify distance (tele)	67.3 m
Recognize distance (tele)	134.6 m
Detect distance (wide)	211 m
Observe distance (wide)	83.7 m
Observe distance (tele)	267 m
Identify distance (wide)	21.1 m
Recognize distance (wide)	42.2 m
Detect distance (tele)	672.9 m
Closest focusing distance	1.5 m

Night vision	Yes
Night vision distance	50 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video formats supported	AV1,AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	160 x 120,2560 x 1600 (WQXGA),2592 x 1944,3840 x 2160
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)
Text caption overlay	Yes
Flip & mirror	Yes

Audio formats supported	AAC-LC,ADPCM,G.726,OPUS,PCM
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	4000 MB

RS-485 ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Intelligent Video Surveillance (IVS) system features	Abandoned object,Face detection,Line crossing detection
Privacy protection	Yes
Human and vehicle targets classification	Yes

Power source type	DC,PoE
Power consumption (typical)	7.8 W
Power consumption (max)	25.5 W
Power consumption (Power over Ethernet (PoE))	25.5 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	178 mm
Depth	429 mm
Height	179 mm
Weight	4880 g

Number of cameras	1
Wiper included	Yes

Compliance certificates	REACH,RoHS
Doesn't contain	CFR,PVC/BFR
