Produktbeskrivning

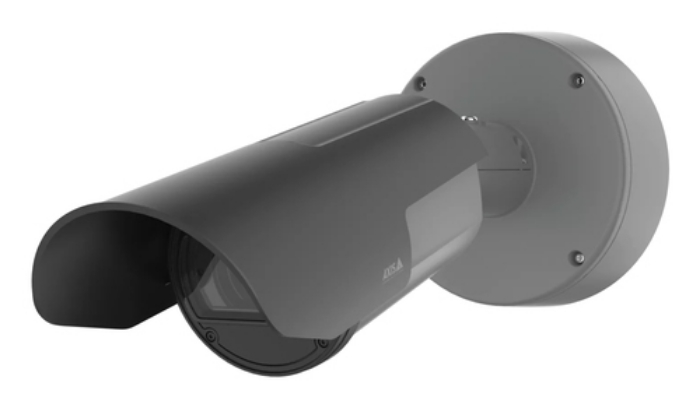

This purpose-tuned camera is ideal for traffic surveillance and smart city initiatives - enabling you to capture sharp license plate images 24/7. Made for 3rd party LPR software, it can help law enforcement agencies improve road safety and gather valuable intelligence.

Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.

Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.

Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.



Viktiga egenskaper

Axis Q1800-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.06 lx, Angle of rotation: 270°, Horizontal field of view (thermal module): 38 - 2.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM

Form factor	Bullet
Mounting type	Wall
Product colour	Black
Housing material	Aluminium,Glass
Protection features	Impact resistant,Vandal proof,Weather resistant
International Protection (IP) code	IP66
IK code	IK08, IK10

Minimum illumination	0.06 lx
Angle of rotation	270 °
Horizontal field of view (thermal module)	38 - 2.3 °
Lens viewing angle, horizontal	22 - 1.3 °
Tilt angle range	0 - 90 °
Pan range	-180 - 180 °
Camera pixel size	2.9 µm
Camera shutter speed	1/111000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Focal length range	7 - 138 mm
Auto focus	Yes
Identify distance	1.2 m
Recognize distance (wide)	19.3 m
Detect distance (wide)	96.7 m
Closest focusing distance	1.2 m
Identify distance (wide)	9.7 m
Recognize distance (tele)	376.8 m
Observe distance (tele)	747.7 m
Observe distance (wide)	38.4 m
Identify distance (tele)	188.4 m
Detect distance (tele)	1884.2 m

Night vision	Yes
Night vision distance	100 m
B/W night vision distance	50 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,M-JPEG
Supported graphics resolutions	160 x 120,320 x 180,1400 x 1050 (SXGA+),1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	90 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image stabilizer	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Built-in speaker(s)	Yes
Audio system	2-way
Audio formats supported	AAC-LC,ADPCM,LPCM,OPUS,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3 , HTTP/ 2, TLS3 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Password protection	Yes
Digest authentication	Yes
Active tampering alarm	Yes
Pixel counter	Yes
Video motion detection	Yes
Intelligent Video Surveillance (IVS) system features	Human detection,Line crossing detection,Moving object,Vehicle detection
Security algorithms	HTTPS

Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	11 W
Power consumption (max)	29 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	183 mm
Depth	464 mm
Height	183 mm
Weight	3200 g

Number of cameras	1
Cables included	LAN (RJ-45)
Manual	Yes

Doesn't contain	BFR,CFR
Compliance certificates	Electromagnetic Compatibility (EMC),Trade Agreements Act (TAA)
