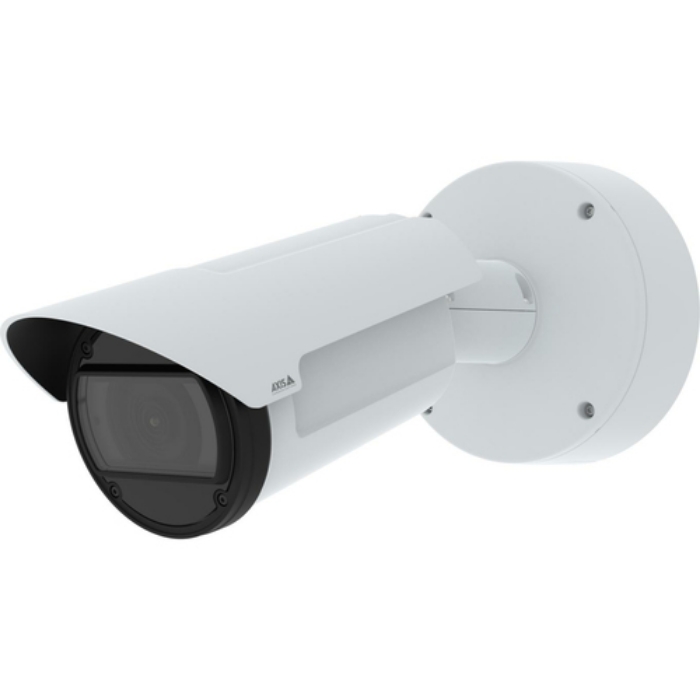

AXIS Q1806-LE Bullet Camera

This high-performance bullet camera offers 4 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.

First-class at any distance

With 32x optical zoom, AXIS Q1806-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene. Furthermore, optical image stabilization (OIS) ensures stable images even in low-light situations.

Cost-effective and secure

This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out, it can power other devices such as speakers and strobe sirens. Plus, edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing, this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Deep learning analytics

Built on ARTPEC-8, AXIS Q1806-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Thanks to AXIS Object Analytics it’s possible to detect and classify moving objects. Furthermore, with support for ACAP version 4, you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.



Viktiga egenskaper

Axis Q1806-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.02 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 60 - 2.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 32x, Focal length range: 4.3 - 137 mm, Detect distance (wide): 87.7 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Form factor	Bullet
Mounting type	Wall
Product colour	Black,White
Housing material	Aluminium,Glass
Protection features	Impact resistant
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.02 lx
Angle of rotation	360 °
Lens viewing angle, horizontal	60 - 2.3 °
Lens viewing angle, vertical	39 - 1.3 °
Tilt angle range	0 - 90 °
Pan range	-180 - 180 °
Camera pixel size	2 µm
Camera shutter speed	1/143000 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "

Number of lenses	1
Zoom capability	Yes
Optical zoom	32 x
Focal length range	4.3 - 137 mm
Minimum aperture number	1.4
Maximum aperture number	4
Observe distance (wide)	34.8 m
Detect distance (tele)	2732.1 m
Recognize distance (tele)	546.4 m
Recognize distance (wide)	17.5 m
Identify distance (wide)	8.8 m
Observe distance (tele)	1084.2 m
Identify distance (tele)	273.2 m
Closest focusing distance	1.2 m
Detect distance (wide)	87.7 m

Night vision	Yes
Night vision distance	100 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2880 x 1620 pixels
Total megapixels	4 MP
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	1280 x 800 (WXGA),2880 x 2160
Frame rate	90 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy masking	Yes
Text caption overlay	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
ROM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Password protection	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Digest authentication	Yes
Alert notification type	E-mail
Video motion detection	Yes
Intelligent Video Surveillance (IVS) system features	Human detection,Line crossing detection,Moving object,Vehicle detection

Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	14.6 W
Power consumption (max)	51 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	183 mm
Depth	411 mm
Height	183 mm
Weight	3200 g

Number of cameras	1
Cables included	LAN (RJ-45)
Manual	Yes

Doesn't contain	PVC/BFR
Compliance certificates	REACH,RoHS
