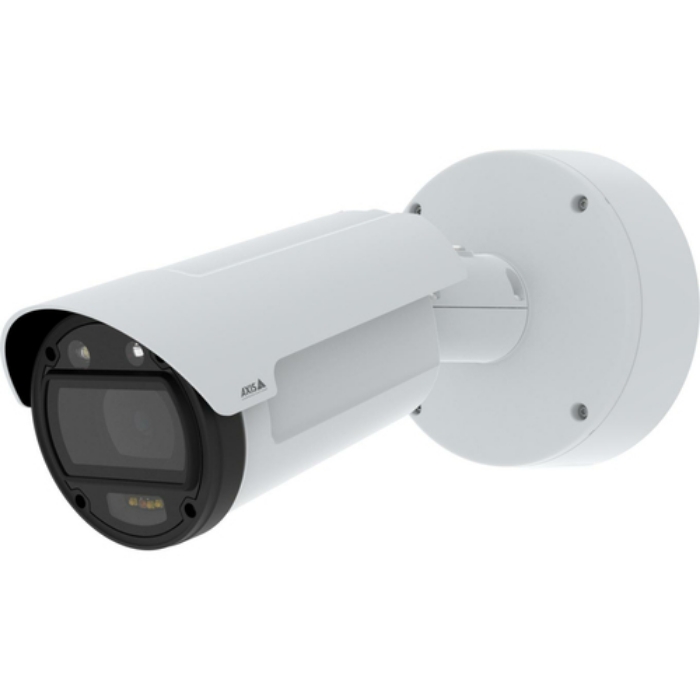

AXIS Q1808-LE Bullet Camera

This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.

Excellent forensic details and powerful performance

Featuring a 4/3” image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, a deep learning processing unit (DLPU) lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Great coverage in wide, open areas

With a wide (12 – 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.

Excellent details at great distances

With a tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it’s ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 150 m (500 ft) without the need for extra lighting.

Enjoy big savings

Not only does this powerful camera deliver outstanding 4K details, but thanks to Zipstream H.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage - regardless of your VMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode reduces power demands by as much as 50% in certain temperature ranges.

Reliable and robust

AXIS Q1808-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With supervised inputs, you’ll be notified if the connection is cut. Plus, it can be powered with DC power and PoE, and even if there’s a power outage, redundant DC power ensures a reliable power supply to safeguard your data. This robust, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Plus, with premium Q-line functionality, it guarantees always-great image quality.



Viktiga egenskaper

Axis Q1808-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 90 - 21°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Optical zoom: 4x, Focal length range: 12 - 48 mm, Focus: Motorized



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Form factor	Bullet
Mounting type	Wall
Product colour	Black,White
Housing material	Aluminium,Glass
Protection features	Impact resistant
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.004 lx
Angle of rotation	360 °
Lens viewing angle, horizontal	90 - 21 °
Lens viewing angle, vertical	49 - 12 °
Tilt angle range	0 - 90 °
Pan range	-180 - 180 °
Camera pixel size	4.63 µm
Camera shutter speed	1/45500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	4/3 "

Number of lenses	1
Zoom capability	Yes
Optical zoom	4 x
Focal length range	12 - 48 mm
Focus	Motorized
Maximum aperture number	4
Observe distance (wide)	169.4 m
Closest focusing distance	1.5 m
Identify distance (wide)	42.7 m
Detect distance (tele)	1275.8 m
Identify distance (tele)	127.6 m
Recognize distance (tele)	255.1 m
Recognize distance (wide)	85.4 m
Detect distance (wide)	426.9 m
Observe distance (tele)	506.3 m

Night vision	Yes
Night vision distance	100 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3712 x 2784 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	160 x 120,160 x 90,1280 x 800,3840 x 2160
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Text caption overlay	Yes
Privacy masking	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3at,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, L
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
ROM capacity	2048 MB

Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Password protection	Yes
Digest authentication	Yes
Pixel counter	Yes
Intelligent Video Surveillance (IVS) system features	Face detection,Human detection,Line crossing detection,Moving object,Vehicle detection
Alert notification type	E-mail
Security algorithms	SNMP

Remotely operated	Yes

Power source type	PoE
Power consumption (typical)	14.9 W
Power consumption (max)	51 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	3200 g

License plate recognition	Yes

Number of cameras	1
Cables included	LAN (RJ-45)
Manual	Yes

Compliance certificates	REACH,RoHS
Doesn't contain	PVC/BFR
