Produktbeskrivning

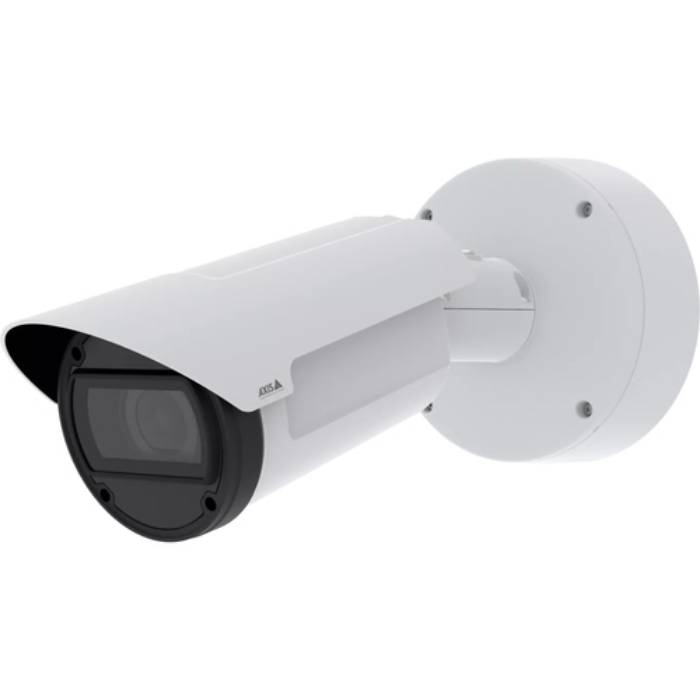

Ideal for long distance surveillance, this all-in-one, outdoor-ready bullet camera delivers superior image quality in 41 MP with high light sensitivity and extremely high pixel density.

See all the details
Built on a dual Axis system-on-chip, this device delivers extreme detail over great distances and excellent forensic value. It offers 41 MP at 15 fps or 8K at up to 30 fps. And a 4/3” image sensor ensures exceptional low-light performance. With a custom-made, tele Canon lens, it’s perfect for long-distance surveillance and delivers extremely high pixel density. Electronic image stabilization (EIS) ensures smooth video in situations where a camera is subject to vibrations, for instance, at sports arenas or windy harbors. Furthermore, Axis Zipstream reduces bandwidth and storage requirements without compromising image quality.

All-in-one and ready for everything
This powerful camera offers everything you need and is out-of-the-box ready to use. Enclosed in a robust aluminum casing, it also includes a mounting arm for easy installation. And a spacious back box ensures secure cable management. It features a custom-made, tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view. With 3x zoom, it’s ideal for identification purposes. In addition, thanks to PoE out, you can connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation.

Secure and robust surveillance
AXIS Q1809-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. This robust, weather-protected, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and features a IK08-rated impact-resistant glass front window. It has an operating temperature range from -40 °C to 55 °C (-40 °F to 131 °F). Furthermore, surge protection minimizes damage in the case of a power surge.



Viktiga egenskaper

Axis Q1809-LE 150mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Focal length range: 50 - 150 mm, Focus: Motorized, Detect distance (wide): 853.8 m



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CSA, UL/cUL, CE, EAC, VCCI, RCM

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	Black,White
Housing material	Aluminium,Glass
Protection features	Impact resistant
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.04 lx
Angle of rotation	270 °
Lens viewing angle, horizontal	21 - 7 °
Lens viewing angle, vertical	12 - 4 °
Tilt angle range	0 - 90 °
Pan range	-180 - 180 °
Camera pixel size	2.315 µm
Camera shutter speed	1/15500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	4/3 "

Number of lenses	1
Zoom capability	Yes
Focal length range	50 - 150 mm
Focus	Motorized
Maximum aperture number	4
Observe distance (wide)	338.8 m
Closest focusing distance	5 m
Recognize distance (wide)	170.8 m
Observe distance (tele)	1012.6 m
Recognize distance (tele)	510.2 m
Detect distance (tele)	2551.6 m
Identify distance (wide)	85.4 m
Detect distance (wide)	853.8 m
Identify distance (tele)	255.2 m

Night vision	Yes
LED type	IR
Infra-red wavelength	900 nm

Maximum resolution	7680 x 4320 pixels
Total megapixels	41 MP
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Video compression formats	H.264,H.265
Supported graphics resolutions	160 x 120,160 x 90,1280 x 800,3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Mirror,Sharpness
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1AE,IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Streaming method	Multicast
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
ROM capacity	4096 MB

Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Password protection	Yes
Pixel counter	Yes
Alert notification type	E-mail
Security algorithms	EAP-TLS,HTTPS
Digest authentication	Yes

Cloud-managed	Yes
Remotely operated	Yes

Power source type	DC,PoE
Power consumption (typical)	17.6 W
Power consumption (max)	35 W
Power consumption (Power over Ethernet (PoE))	18.9 W

Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Depth	411 mm
Height	183 mm
Diameter	183 mm
Weight	3200 g

Number of cameras	1

Compliance certificates	REACH,RoHS
