Produktbeskrivning

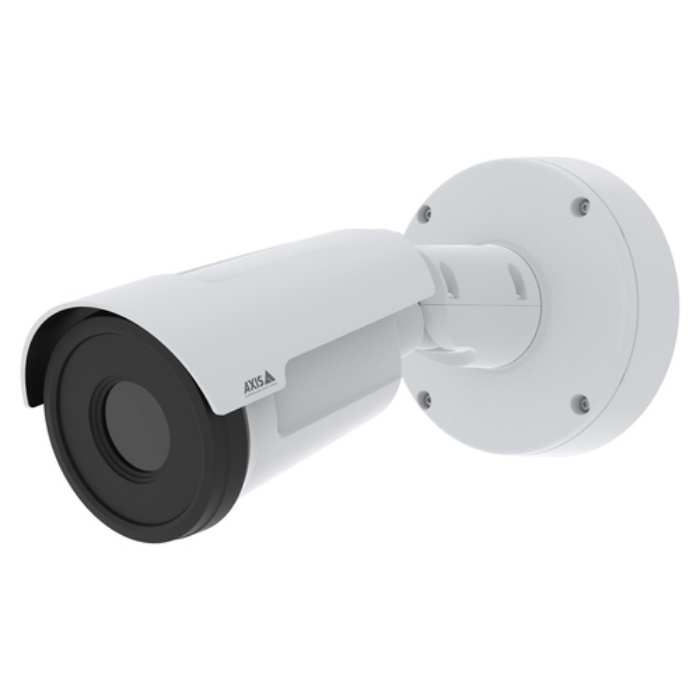

Ideal to improve operational efficiency, this thermometric camera lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You’ll know if your equipment is close to overheating and can act to avoid unwanted downtime. Supporting up to 10 configurable polygonal detection areas, you can monitor for specific temperature levels or change-rates. With early fire detection analytics, it’s possible to monitor early signs of fire with smart filtering of potential false alarms. AXIS Q1961-TE includes built-in cybersecurity features to help safeguard your system. Furthermore, edge-to-edge technology lets you connect network speakers to enable audio alarms.



Viktiga egenskaper

Axis 02174-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Thermal module	Yes
Built-in processor	Yes
Processor model	ARTPEC-8
Number of languages	19
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Thermal sensitivity (NETD)	40 mK
Certification	CSA, UL/cUL, UKCA, CE, KC

Form factor	Bullet
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Lens viewing angle, horizontal	55 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Sensor type (thermal module)	Noise equivalent temperature difference (NETD)

Lens diameter	7 mm
Maximum aperture number	1.18

Night vision	No

Maximum resolution	384 x 288 pixels
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Gain control type	Auto
Privacy masking	Yes

Audio system	1-way
Audio input channels	1.0 channels
Audio output channels	1.0 channels

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Terminal block port	Yes
DC-in jack	Yes

Temperature sensor	Yes
Temperature measurement accuracy	5 °C
Temperature measurement range	-40 - 350 °C
Fire detection	Yes
Password protection	Yes
Network access storage (NAS)	Yes
Mirror	Yes
IP address filtering	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Digest authentication	Yes
Video motion detection	Yes

Power source type	DC,PoE
Power consumption (typical)	4.1 W
Power consumption (max)	12.95 W
Power consumption (Power over Ethernet (PoE))	4.3 W
DC output voltage	10,12,15,16,24,28

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Diameter	132 mm
Length	272 mm
Weight	1400 g

Number of cameras	1
Manual	Yes
