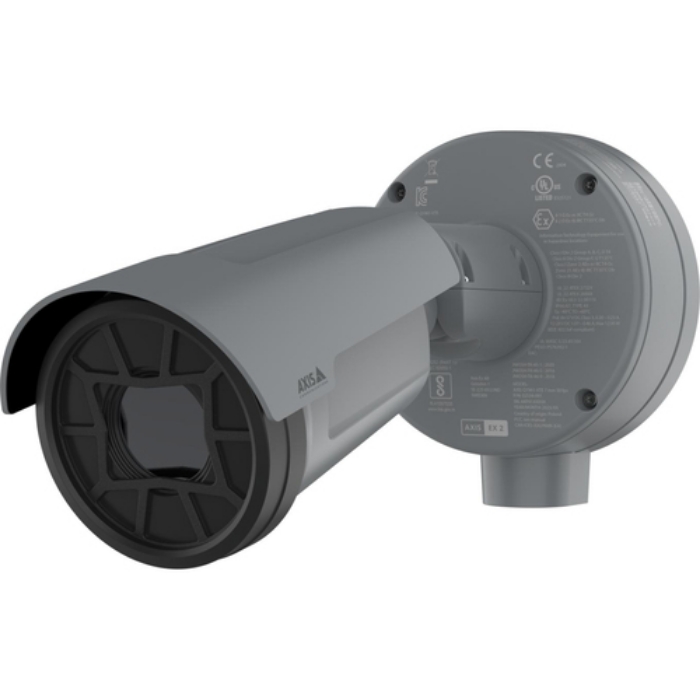

AXIS Q1961-XTE Explosion-Protected Thermal Camera

Certified for Zone and Division 2 hazardous locations, this explosion-protected, thermometric camera can remotely monitor temperatures and trigger temperature-based events. So, you can avoid unwanted downtime in production and plan for predictive maintenance.

What’s the temperature? Thermometric!

AXIS Q1961-XTE can measure temperatures from -40 °C to 350 °C (-40 °F to 660 °F).* It will send a notification if the temperature exceeds or falls below a set threshold which could indicate that the equipment is getting close to overheating, or there’s a leak in the system. It will also send a notification if the temperature increases or decreases too rapidly. This thermal camera supports up to 10 configurable polygonal detection areas. And spot temperature reading lets you see the exact temperature in specific areas. Furthermore, it can be integrated with process control systems, so you can create a data-driven sensory network and gain deeper insights into your processes.

Smart and accurate

This thermometric camera can remotely monitor temperatures, so you don’t need to be on site to know if your equipment is getting close to overheating. Smart filtering will disregard uninteresting objects such as the warm exhausts of passing work vehicles, resulting in fewer false notifications. Thanks to edge-to-edge technology, you can connect, for instance, a network speaker to enable audio alarms. And through metadata, you’ll have access to temperature statistics. This thermometric camera also offers support for powerful analytics.

Cost-efficient coverage in hazardous areas

AXIS Q1961-XTE is designed and certified for Zone and Division 2 explosion-prone applications (Zone 2,21 and Class I/II/III Division 2 according to ATEX/IECEx/cULus). This cost-efficient camera is compact and lightweight, and it supports PoE for easy and flexible installation. Featuring a 7 mm lens, it offers wide area coverage. Electronic image stabilization (EIS) provides smooth video even in scenes with vibrations. Furthermore, this sturdy camera is IP66- and IP67-rated for protection against the ingress of water and dust. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.



Viktiga egenskaper

Axis Q1961-XTE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Grey, Form factor: Bullet. Lens viewing angle, horizontal: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Closest focusing distance: 1.3 m, Infrared spectral band: 8 - 14 µm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Number of languages	19
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Thermal sensitivity (NETD)	40 mK

Form factor	Bullet
Mounting type	Wall
Product colour	Black,Grey
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Lens viewing angle, horizontal	55 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Effective sensor resolution (thermal module)	384 x 288 pixels

Number of lenses	1
Maximum aperture number	1.18
Infrared spectral band	8 - 14 µm
Closest focusing distance	1.3 m

Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Gain control type	Auto
Text caption overlay	Yes
Privacy masking	Yes
Flip & mirror	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	1-way
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Sample rate	48 kHz
Audio detection	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, L
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Temperature sensor	Yes
Temperature measurement range	-40 - 350 °C
Temperature measurement accuracy	5 °C
Fire detection	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Digest authentication	Yes
Active tampering alarm	Yes
Security algorithms	EAP-TLS,MSCHAPv2,PEAP,TLS

Power source type	DC,PoE
Power consumption (typical)	4.3 W
Power consumption (max)	12.95 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	152 mm
Depth	292 mm
Height	152 mm
Weight	1500 g

Number of cameras	1
Manual	Yes

Doesn't contain	CFR,PVC/BFR
Compliance certificates	REACH,RoHS
