Viktiga egenskaper

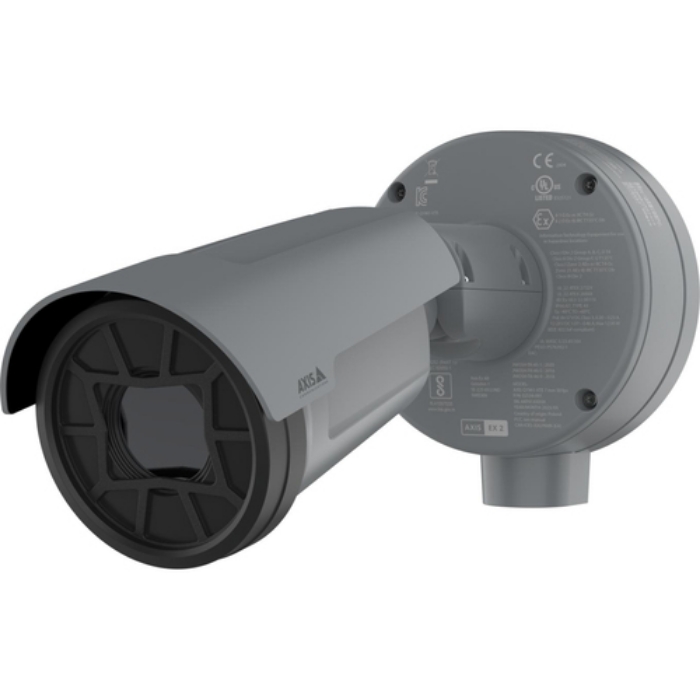

Axis Q1961-XTE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Grey, Form factor: Bullet. Lens viewing angle, horizontal: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Closest focusing distance: 1.3 m, Infrared spectral band: 8 - 14 µm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Thermal sensitivity (NETD)	40 mK
Number of languages	19
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Bullet
Mounting type	Wall
Product colour	Black,Grey
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Lens viewing angle, horizontal	55 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Effective sensor resolution (thermal module)	384 x 288 pixels

Number of lenses	1
Maximum aperture number	1.18
Closest focusing distance	1.3 m
Infrared spectral band	8 - 14 µm

Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	8.3 fps
Gain control type	Auto
Text caption overlay	Yes
Privacy masking	Yes
Flip & mirror	Yes
Image stabilizer	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Audio system	1-way
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Sample rate	48 kHz
Audio detection	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, L
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Temperature sensor	Yes
Temperature measurement accuracy	5 °C
Temperature measurement range	-40 - 350 °C
Fire detection	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Digest authentication	Yes
Active tampering alarm	Yes
Security algorithms	EAP-TLS,MSCHAPv2,PEAP,TLS

Power source type	DC,PoE
Power consumption (typical)	4.3 W
Power consumption (max)	12.95 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	152 mm
Depth	292 mm
Height	152 mm
Weight	1500 g

Number of cameras	1
Manual	Yes

Doesn't contain	CFR,PVC/BFR
Compliance certificates	REACH,RoHS
