Produktbeskrivning

Reliable detection and visual verification- always

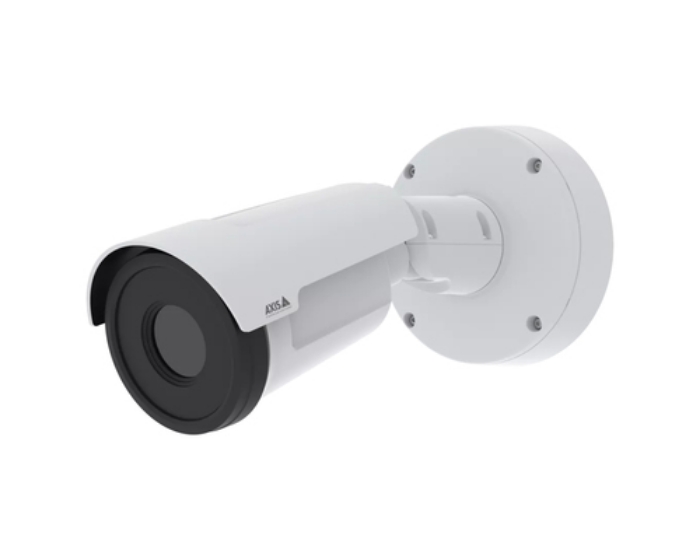

Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn’t impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn’t deliver images that allow for identification, privacy is always guaranteed.

Powerful analytics platform

AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it’s possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.

Secure, robust, and sustainable

This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it’s impact- and weather-resistant. What’s more, this robust, sustainable device offers a low carbon footprint. It’s made from halogen-free materials and there’s no need for lighting in dark scenes, ensuring lower system power consumption.



Viktiga egenskaper

Axis Q1972-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 31°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 640 x 480 pixels. Lens diameter: 1.9 cm, Closest focusing distance: 8.5 m, Infrared spectral band: 8 - 14 µm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Preset points	Yes
Thermal sensitivity (NETD)	20 mK
Certification	CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, C

Form factor	Bullet
Mounting type	Wall
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10
Weatherproof	Yes

Lens viewing angle, horizontal	31 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Number of sensors	1
Effective sensor resolution (thermal module)	640 x 480 pixels

Number of lenses	1
Lens diameter	19 mm
Maximum aperture number	1
Closest focusing distance	8.5 m
Infrared spectral band	8 - 14 µm

Maximum resolution	640 x 480 pixels
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Video streaming	Yes
Gain control type	Auto
Bit rate control	Variable Bit Rate (VBR)
Flip & mirror	Yes
Image stabilizer	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Sharpness

Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Sample rates	8 - 48 kHz
Audio detection	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH,
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
RS-422 ports	1
RS-485 ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Privacy protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Digest authentication	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,FIPS 140-2,MSCHAPv2,PEAP
Pixel counter	Yes
Alert notification type	E-mail

Power source type	DC,PoE
Power consumption (typical)	5 W
Power consumption (max)	12.95 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	132 mm
Depth	264 mm
Height	132 mm
Weight	1400 g

Number of cameras	1
Manual	Yes

Doesn't contain	CFR,PVC/BFR
Compliance certificates	REACH,RoHS
